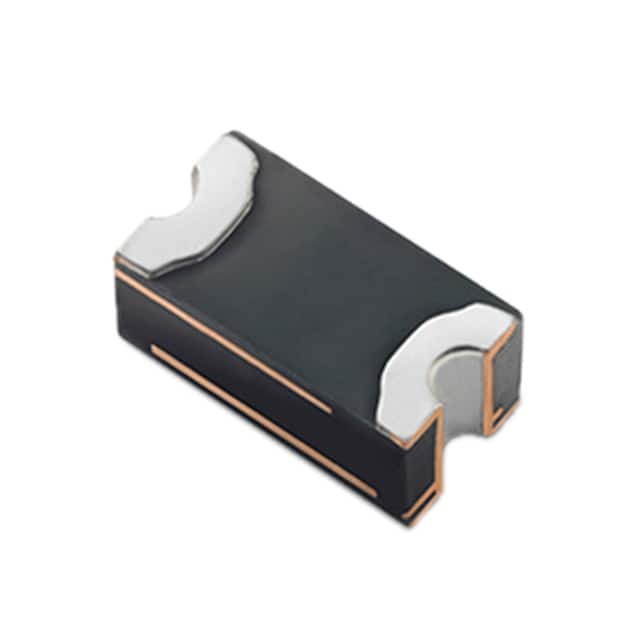

FEMTOASMDC005F-2 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

FEMTOASMDC005F-2

Part No FEMTOASMDC005F-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Datasheet
FEMTOASMDC005F-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, femtoASMD
Package Tape & Reel
Type Polymeric
Voltage - Max 15V
Current - Max 10 A
Current - Hold (Ih) (Max) 50 mA
Current - Trip (It) 150 mA
Time to Trip 100 ms
Resistance - Initial (Ri) (Min) 3.8 Ohms
Resistance - Post Trip (R1) (Max) 30 Ohms
Ratings PS300, PS400
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Thickness (Max) 0.033" (0.85mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1314489-FEMTOASMDC005F-2
Ultra Librarian 3D Model Ultra Librarian FEMTOASMDC005F-2 CAD Model

Description

The FEMTOASMDC005F-2 is a PolySwitch® femtoASMD series PTC resettable fuse from Littelfuse Inc.

  • Series: PolySwitch® femtoASMD
  • Voltage Rating: 15V
  • Maximum Current: 10A
  • Current Hold: 50mA
  • Current Trip: 150mA
  • Time to Trip: 100ms
  • Mounting Type: SMD (SMT)
  • Packaging: Tape & Reel
  • Package: 0603 (1608 Metric)
  • Thickness: 0.033" (0.85mm)
  • Dimension: 0.063" L x 0.032" W (1.60mm x 0.80mm)
  • Initial Resistance: 3.8 Ohms
  • Post-Trip Resistance: 30 Ohms
