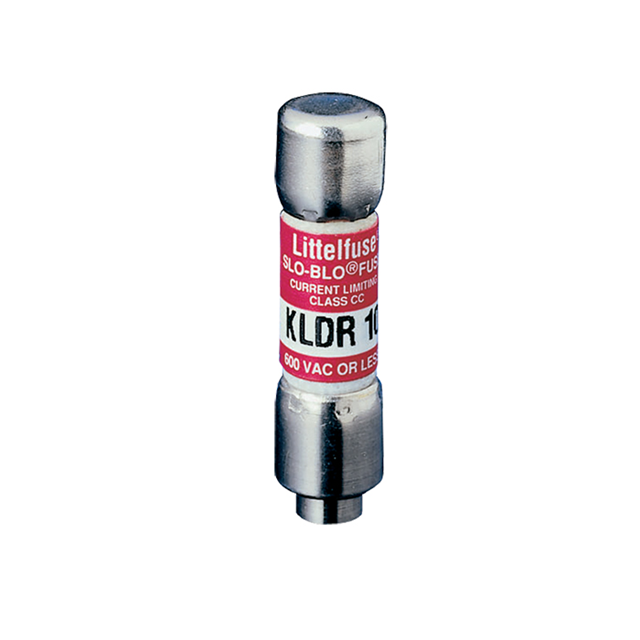

KLDR.500HXP Real Image
Same model may have multiple batches, images only for reference.

KLDR.500HXP

Part No KLDR.500HXP
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CRTRDGE 500MA 600VAC/300VDC / 500mA 600 V AC 300 V DC Fuse Cartridge Requires Holder
Datasheet
KLDR.500HXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® KLDR
Package Bulk
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 500mA
Voltage Rating - AC 600 V
Voltage Rating - DC 300 V
Response Time Slow Blow
Applications Transformer Protection
Class CC
Approval Agency CE, CSA, UL
Breaking Capacity @ Rated Voltage 200kA AC, 20kA DC
Package / Case 5AG, 10mm x 38mm (Midget)
Size / Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Win Source Part Number 1339748-KLDR.500HXP
Ultra Librarian 3D Model Ultra Librarian KLDR.500HXP CAD Model

Description

The POWR-GARD® KLDR from Littelfuse Inc. is a cartridge fuse used in circuit protection and transformer protection applications.

  • Series: POWR-GARD® KLDR
  • Manufacturer: Littelfuse Inc.
  • Application: Circuit Protection, Transformer Protection
  • Response Time: Slow Blow
  • Breaking Capacity: 200kA AC, 20kA DC @ Rated Voltage
  • Voltage Rating: 600V AC and 300V DC
  • Package: Midget
  • Size/Dimension: 5AG, 10mm x 38mm
  • Mounting: Holder
  • Current Rating: 500mA
  • Package: Bulk
  • Standard Package: 100
  • Approvals: CE, CSA, UL
