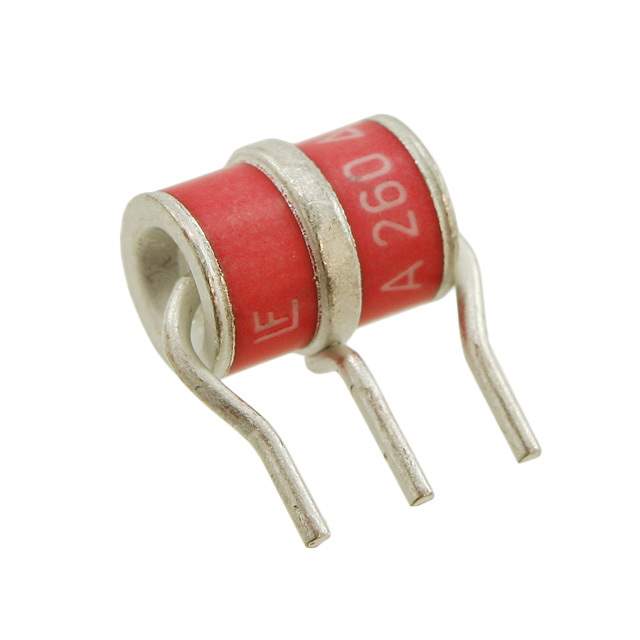

The SL1021A250RF is a high-power TVS (Transient Voltage Suppression) diode array from Littelfuse Inc. It is designed to protect sensitive electronic equipment against voltage transients induced by lightning, inductive load switching, and electrostatic discharge (ESD). This device offers robust protection in a small form factor, making it suitable for a wide range of applications.

Applications

• Data lines and I/O ports
• Microprocessor protection
• Security systems
• Medical equipment
• Industrial controls
• Telecom Equipment

Features

• Low clamping voltage: Provides effective protection by limiting the voltage to a safe level.
• Fast response time: Quickly reacts to transient events, ensuring rapid protection.
• Low capacitance: Minimizes signal degradation in high-speed data lines.
• RoHS compliant: Meets environmental regulations for hazardous substances.
• Surface mount package: Facilitates automated assembly and reduces board space.
• High surge capability: Can withstand high surge currents without failure.

Benefits

• Enhanced system reliability: Protects sensitive components from damage due to voltage transients, increasing the overall lifespan of the equipment.
• Reduced downtime: Minimizes equipment failures caused by voltage surges, leading to less downtime and maintenance.
• Cost savings: Prevents costly repairs and replacements of damaged components.
• Improved product safety: Ensures that equipment operates safely and reliably under various environmental conditions.
• Compliant with industry standards: Meets or exceeds industry standards for surge protection.

Additional Details

The SL1021A250RF has a standoff voltage of 25V and a peak pulse current rating that ensures robust protection against significant transient events. It is designed to operate over a wide temperature range. The device is available in a compact surface mount package, making it easy to integrate into various circuit designs. The specific package type and dimensions are available in the Littelfuse datasheet.
