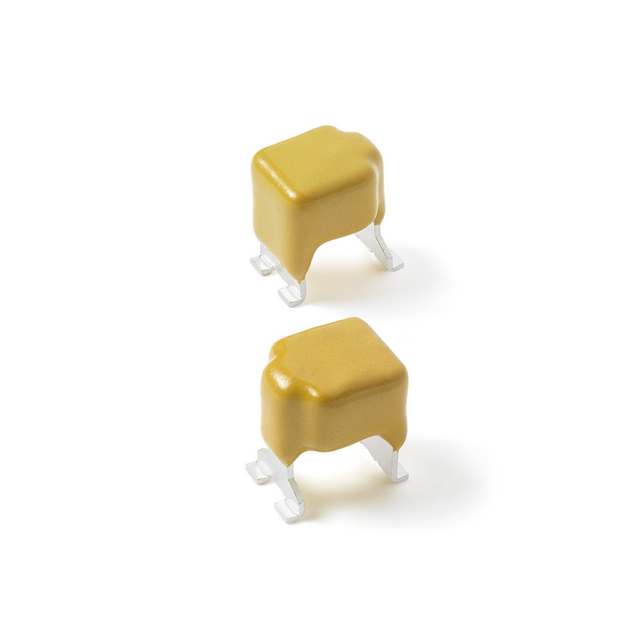

SMTAK3-058C Real Image
Same model may have multiple batches, images only for reference.

SMTAK3-058C

Part No SMTAK3-058C
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Datasheet
SMTAK3-058C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Package Bulk
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 58V
Voltage - Breakdown (Min) 64V
Voltage - Clamping (Max) @ Ipp 110V
Current - Peak Pulse (10/1000µs) 3000A (3kA) (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 6000pF @ 10kHz (Max)
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case 4-SMD
Other Names -1024-SMTAK3-058C,F9741
Standard Package 200
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300935-SMTAK3-058C
Ultra Librarian 3D Model Ultra Librarian SMTAK3-058C CAD Model

Description

The 1300935-SMTAK3-058C is a Zener type TVS diode from Littelfuse Inc. that is designed for general-purpose applications.

  • Package: Bulk
  • Standard Package: 200
  • Reverse Standoff Voltage: 58V
  • Minimum Breakdown Voltage: 64V
  • Clamping Voltage: 110V @ 3kA for an 8/20μs pulse
  • Temperature Range: -55°C to 125°C (TJ)
  • Capacitance: 6000pF @ 10kHz (Max)
  • Type: Bidirectional
  • Mounting: Surface mount technology (SMT)
  • Package: 4-SMD package
  • ECCN: EAR99
  • RoHS Status: Non-compliant
