Same model may have multiple batches, images only for reference.

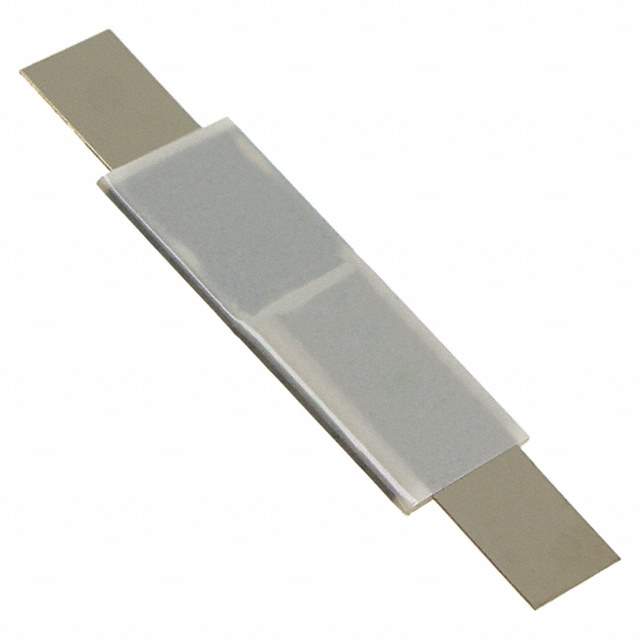

LR4-380F Real Image
Same model may have multiple batches, images only for reference.

LR4-380F

Part No LR4-380F
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PolySwitch™ Resettable Device Short Form Catalog | PTC RESET FUSE 15V 3.8A STRAP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Type Polymeric
Voltage - Max 15V
Current - Max 100A
Current - Hold (Ih) (Maximum) 3.8A
Current - Trip (It) 8.3A
Time to Trip 5s
Resistance - Initial (Ri) (Minimum) 13 mOhms
Resistance - Post Trip (R1) (Maximum) 37 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style User Defined
Manufacturer Package Strap
Parts Dimension 0.984" L x 0.283" W (25.00mm x 7.20mm)
Thickness (Maximum) 0.039" (1.00mm)
Approvals CSA, TUV, UL
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1204484-LR4-380F
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LR4-380F CAD Model

Description

The Littelfuse Inc. LR4-380F is a polymeric fuse designed for circuit protection.

  • Maximum Voltage: 15V
  • Maximum Current: 100A
  • Current Trip: 8.3A
  • Time to Trip: 5s
  • Packaging: Bulk
  • Approvals: CSA, TUV, and UL
  • Current Hold: 3.8A
  • Resistance: 13 mOhms
  • Package: Strap
  • Thickness: 0.039" (1.00mm)
  • Popularity: Popular
  • Supply and Demand: Balanced
