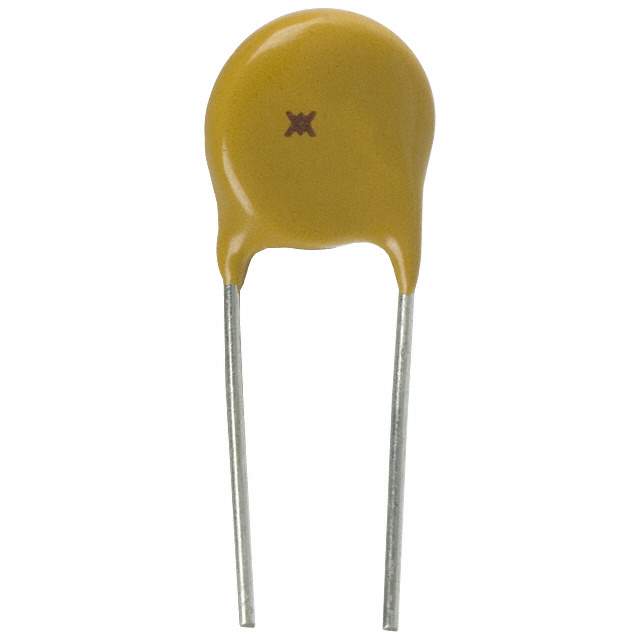

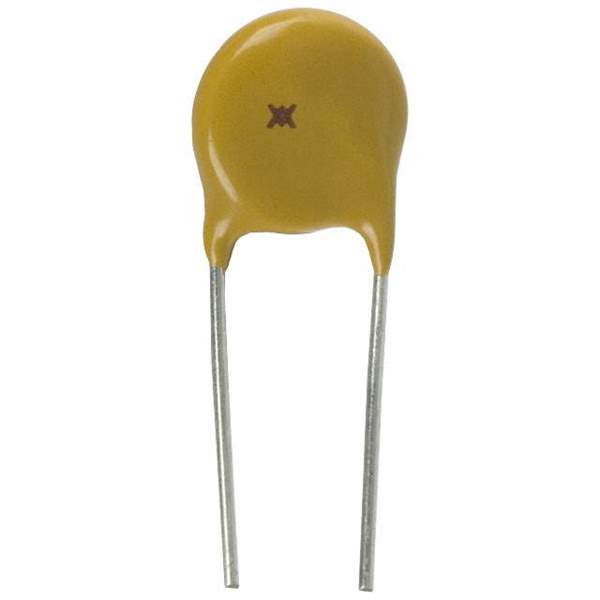

LVR012S Real Image
Same model may have multiple batches, images only for reference.

LVR012S

Part No LVR012S
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH 240VAC .12A HOLD
Datasheet
LVR012S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 1.2A
Current - Hold (Ih) (Max) 120mA
Current - Trip (It) 300mA
Time to Trip 15s
Resistance - Initial (Ri) (Min) 3 Ohm
Resistance - Post Trip (R1) (Max) 12 Ohm
Temperature Range - Operating -20°C to 85°C
Mounting Through Hole
Dimension 0.327" Dia x 0.150" W (8.30mm x 3.80mm)
Height - Seated (Max) 0.430" (10.70mm)
Lead Spacing 0.200" (5.08mm)
Approvals CQC, CSA, TUV, UL
Win Source Part Number 096506-LVR012S
Ultra Librarian 3D Model Ultra Librarian LVR012S CAD Model

Description

The LVR012S is a polymeric type circuit protection component manufactured by Littelfuse Inc. It is approved by CQC, CSA, TUV, and UL. This through-hole mounting component has a maximum voltage of 240V (265V Int) and a maximum current of 1.2A. The time to trip is 15s. The operating temperature range is -20°C to 85°C. This component is suitable for various applications that require a reliable and efficient circuit protection component.
