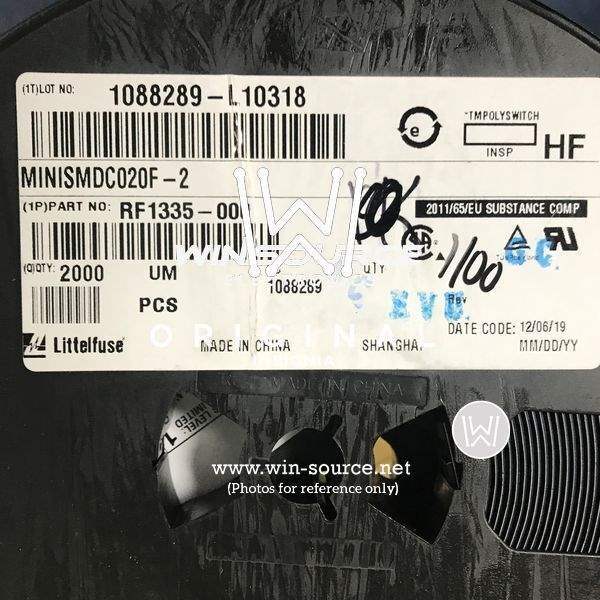

The MINISMDC020F-2(RF1335-000) is a resettable fuse (PPTC) from Littelfuse, designed to protect electronic circuits from overcurrent conditions. Similar to other PPTC devices, it increases its resistance significantly during an overcurrent, thus limiting current and protecting the circuit. It returns to a low resistance state once the overcurrent condition is removed, allowing normal operation to resume. The '020F' indicates a hold current of 0.20A.

Applications:

• USB Port Protection: Safeguards USB ports against short circuits or excessive current draw.
• Portable Devices: Used in devices like smartphones and tablets to protect sensitive internal circuitry.
• Battery Protection: Protects rechargeable battery packs from overcurrent and short circuit conditions.
• Automotive Electronics: Protects various electronic modules in automobiles against electrical faults.
• General Circuit Protection: Used in numerous applications needing resettable overcurrent protection.

Features:

• Resettable Functionality: Automatically resets after an overcurrent condition is resolved.
• Solid State Design: Enhances reliability due to the absence of moving parts.
• Fast Trip Time: Quick response to overcurrent conditions, minimizing potential damage.
• Low Resistance: Maintains low power losses during normal circuit operation.
• Compact Size: Facilitates use in densely populated circuit boards and small form-factor devices.
• Surface Mountable: Compatible with automated assembly processes.

Benefits:

• Increased Reliability: Protects valuable circuitry from potential damage due to overcurrent.
• Minimized Downtime: Automatic resetting capability ensures quick recovery from fault conditions.
• Reduced Maintenance: Eliminates the need for manual fuse replacement.
• Space Efficiency: Small footprint allows integration into compact designs.
• Cost Savings: Provides a reliable protection mechanism with low total cost of ownership.

Additional Details:

The MINISMDC020F-2(RF1335-000) typically has a maximum voltage rating of 6V and a hold current of 0.20A. The trip current will be higher than the hold current. It is essential to consult the manufacturer's datasheet to get precise electrical specifications, thermal characteristics, and application guidance.
