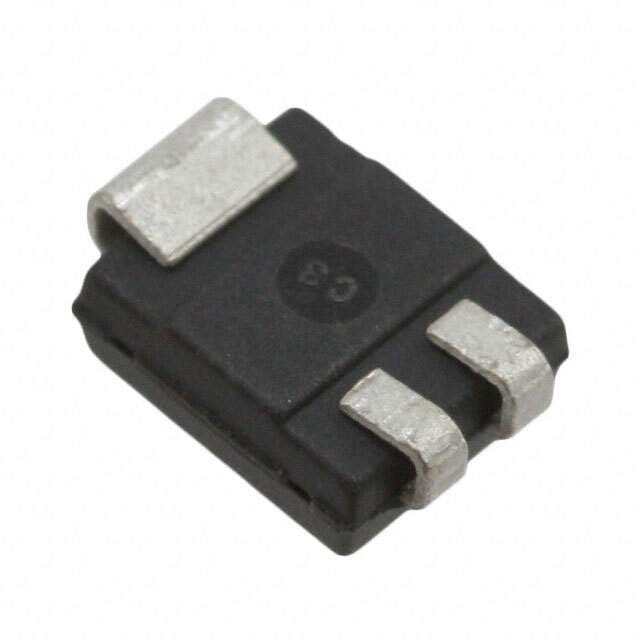

P3602CALRP Real Image
Same model may have multiple batches, images only for reference.

P3602CALRP

Part No P3602CALRP
Manufacturer Littelfuse Inc.
Catalog TVS - Thyristors
Description SIDACTOR BI 340V 150A DO214
Datasheet
P3602CALRP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Voltage - Breakover 220V, 440V
Voltage - Off State 170V, 340V
Voltage - On State 4V
Current - Peak Pulse (8/20μs) 150A
Peak Pulse Current(Ippm) 45A
Current - Hold (Ih) 120mA
Number of Elements 2
Capacitance 25pF, 40pF
Mounting SMD (SMT)
Dimension DO-214AA, SMB (3 Leads), Compak
Win Source Part Number 1085496-P3602CALRP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P3602CALRP CAD Model

Description

The Littelfuse Inc. P3602CALRP is a circuit protection integrated circuit (IC) that is now obsolete and end-of-life.

  • Package: Reel - TR
  • Dimension: DO-214AA, SMB (3 Leads), Compak
  • Elements: Two
  • Capacitance: 25pF and 40pF
  • Peak Pulse Current (Ippm): 45A
  • Voltage - Off State: 170V and 340V
  • Voltage - Breakover: 220V and 440V
  • Voltage - On State: 4V
  • Current - Peak Pulse (8/20μs): 150A
  • Peak Pulse Current (Ippm): 45A
