Same model may have multiple batches, images only for reference.

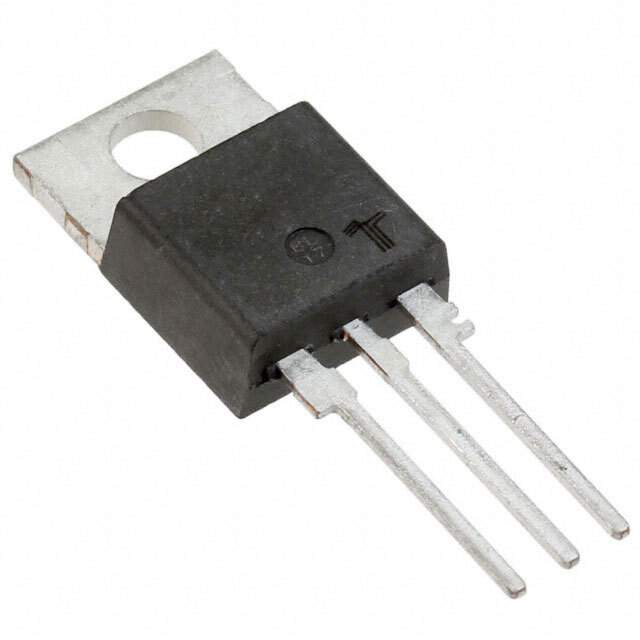

S8055RTP Real Image
Same model may have multiple batches, images only for reference.

S8055RTP

Part No S8055RTP
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Description SCR NON-SENS 800V 55A TO-220 / Thyristor SCR 800V 650A 3-Pin(3+Tab) TO-220AB Non-Isolated Tube
Datasheet
S8055RTP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Littelfuse Inc.
Packaging Tube
Voltage - Off State 800V
Voltage - Gate Trigger (Vgt) (Maximum) 1.5V
Current - Gate Trigger (Igt) (Maximum) 40mA
Voltage - On State (Vtm) (Maximum) 1.8V
Current - On State (It (AV)) (Maximum) 35A
Current - On State (It (RMS)) (Maximum) 55A
Current - Hold (Ih) (Maximum) 60mA
Current - Off State (Maximum) 20μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 550A, 650A
SCR Type Standard Recovery
Operating Temperature Range -40°C ~ 125°C
Mounting Style Through Hole
Package TO-220-3
Manufacturer Package TO-220 Non-Isolated Tab
Win Source Part Number 793703-S8055RTP
Popularity Medium
Supply and Demand Status Limited
Family Name S8055R
Introduction Date July 09, 2008
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian S8055RTP CAD Model

Description

The Littelfuse Inc. 793703-S8055RTP is a standard recovery SCR type.

  • Voltage Off State: 800V
  • Maximum Current Non-Rep. Surge: 550A and 650A @ 50 and 60Hz respectively
  • Package: TO-220-3
  • Mounting Style: Through hole
  • Maximum On-State Current: 55A
  • Maximum Gate Trigger Voltage: 1.5V
