Same model may have multiple batches, images only for reference.

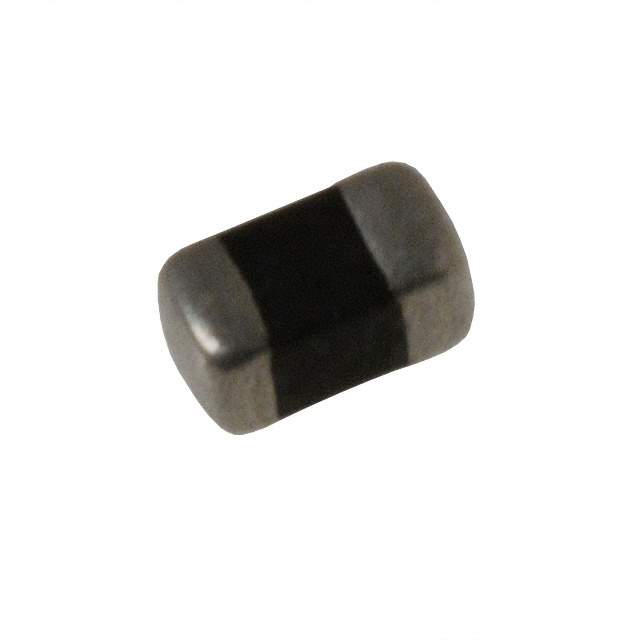

V0603MHS22NH Real Image
Same model may have multiple batches, images only for reference.

V0603MHS22NH

Part No V0603MHS22NH
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 30V 0603
Datasheet
V0603MHS22NH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Energy 0.015J
Number of Circuits 1
Maximum AC Volts 6.5VAC
Maximum DC Volts 9VDC
Capacitance @ Frequency 22pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TA)
Mounting Surface Mount, MLCV
Dimension 0603 (1608 Metric)
Win Source Part Number 036190-V0603MHS22NH
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian V0603MHS22NH CAD Model

Description

The Littelfuse Inc. V0603MHS22NH is a surface mount MLCV capacitor with a capacitance of 22pF @ 1MHz.

  • Capacitance: 22pF @ 1MHz
  • Packaging: reel
  • Circuit: single
  • Classification: circuit protection
  • Status: active
  • Maximum AC Voltage: 6.5VAC
  • Maximum DC Voltage: 9VDC
  • Energy: 0.015J
  • Supply and demand status: sufficient
  • Temperature Range: -55°C to 125°C
