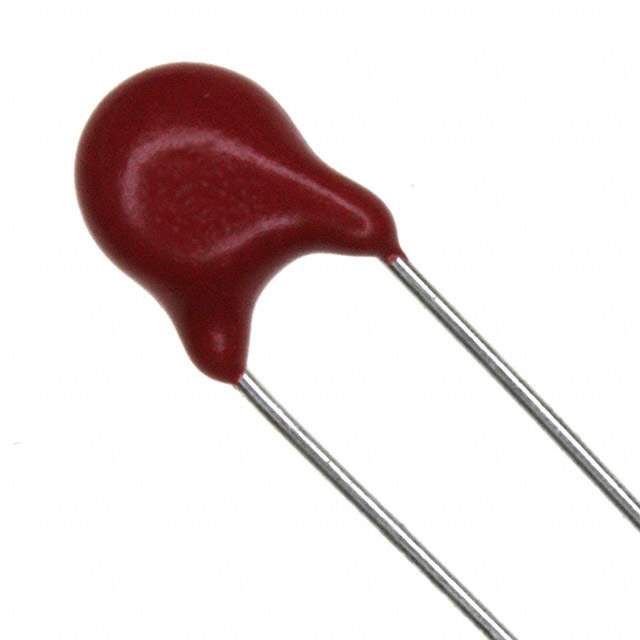

V39ZA05P Real Image
Same model may have multiple batches, images only for reference.

V39ZA05P

Part No V39ZA05P
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 39V 100A DISC 5MM  /  39 V 100 A Varistor 1 Circuit Through Hole Disc 5mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Littelfuse Inc.
Series ZA
Package Bulk
Maximum AC Volts 25 V
Maximum DC Volts 31 V
Varistor Voltage (Min) 35.1 V
Varistor Voltage (Typ) 39 V
Varistor Voltage (Max) 42.9 V
Current - Surge 100 A
Energy 0.3J
Number of Circuits 1
Capacitance @ Frequency 675 pF @ 1 MHz
Temperature Range - Operating -55°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case Disc 5mm
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Names F1957,-1024-V39ZA05P,V39ZA05P-ND,1294-V39ZA05P
Standard Package 1,500
Win Source Part Number 1131971-V39ZA05P
Ultra Librarian 3D Model Ultra Librarian V39ZA05P CAD Model

Description

The ZA series features the 1131971-V39ZA05P TVS - Varistors, MOVs circuit protection product, which comes with a Win Source Part Number of 1131971-V39ZA05P.

  • Package: bulk
  • Number of Circuits: 1
  • Standard Package: 1,500
  • Capacitance @ Frequency: 675 pF @ 1 MHz
  • Varistor Voltage (min): 35.1 V
  • Varistor Voltage (typ): 39 V
  • Varistor Voltage (max): 42.9 V
  • Current Surge: 100 A
  • Maximum AC Volts: 25 V
  • Maximum DC Volts: 31 V
  • Energy: 0.3J
  • Mounting Type: through-hole
  • Package/Case: disc 5mm
  • Operating Temperature: -55°C ~ 85°C (TA)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8533.40.4000
