Same model may have multiple batches, images only for reference.

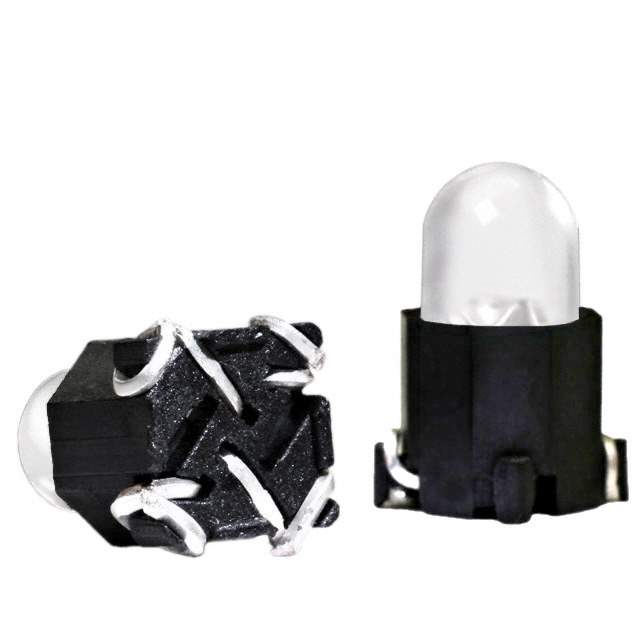

SML-H1505SIUGUBWTR Real Image
Same model may have multiple batches, images only for reference.

SML-H1505SIUGUBWTR

Part No SML-H1505SIUGUBWTR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RGB DIFF SMD DOME LED / Red, Green, Blue (RGB) LED Indication - Discrete 2.2V Red, 3.4V Green, 3.4V Blue 2-SMD, 1505
Datasheet
SML-H1505SIUGUBWTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Red, Green, Blue (RGB)
Configuration Common Cathode
Lens Color White
Lens Transparency Diffused
Millicandela Rating 1100mcd Red, 2200mcd Green, 600mcd Blue
Lens Style Round with Domed Top
Lens Size 4.90mm Dia
Voltage - Forward (Vf) (Typ) 2.2V Red, 3.4V Green, 3.4V Blue
Current - Test 20mA Red, 20mA Green, 20mA Blue
Viewing Angle 60°
Mounting SMD (SMT)
Wavelength - Peak 635nm Red, 520nm Green, 465nm Blue
Package / Case 2-SMD, 1505
Supplier Device Package Surface Mounted Dome LED
Dimension 6.51mm L x 6.51mm W
Height (Max) 11.00mm
Base Product Number SML-H1505
Other Names 67-2073-1,67-2073-2,SMLH1505SIUGUBWTR,67-2073-6
Standard Package 350
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241868-SML-H1505SIUGUBWTR
Ultra Librarian 3D Model Ultra Librarian SML-H1505SIUGUBWTR CAD Model

Description

The SML-H1505SIUGUBWTR LED indication is a high-quality electronic component that is designed to provide reliable and efficient performance in a wide range of applications.

  • Configuration: Common cathode
  • Viewing Angle: 60°
  • Forward Voltage: 2.2V for red, 3.4V for green, and 3.4V for blue
  • Height: 11.00mm
  • Package/Case: 2-SMD, 1505
  • Ideal for: Use in optoelectronics and LED indication applications
