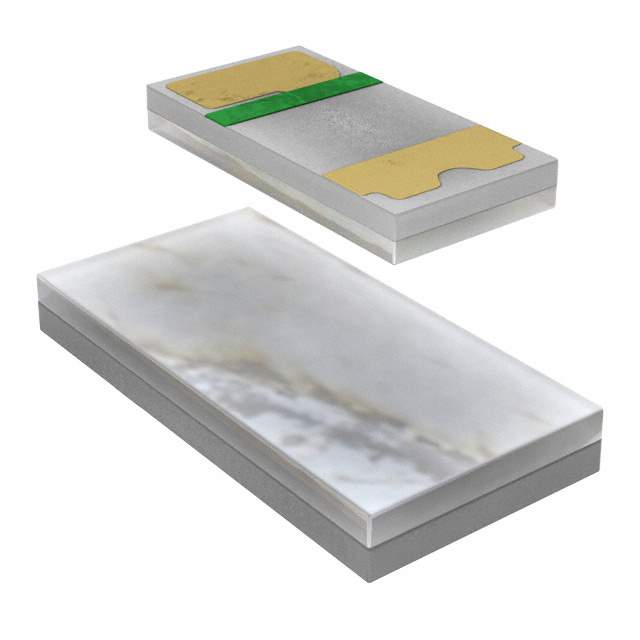

SML-LXFP0603SUGCTR Real Image
Same model may have multiple batches, images only for reference.

SML-LXFP0603SUGCTR

Part No SML-LXFP0603SUGCTR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED GREEN CLEAR SMD / Green LED Indication - Discrete 2V 0603 (1608 Metric)
Datasheet
SML-LXFP0603SUGCTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 13mcd
Lens Style Rectangle with Flat Top
Lens Size 1.60mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 5mA
Viewing Angle 130°
Mounting SMD (SMT)
Wavelength - Peak 574nm
Package / Case 0603 (1608 Metric)
Supplier Device Package SMD
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.20mm
Base Product Number SML-LXFP0603
Other Names 67-2222-1,67-2222-2,67-2222-6
Standard Package 3,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241884-SML-LXFP0603SUGCTR
Ultra Librarian 3D Model Ultra Librarian SML-LXFP0603SUGCTR CAD Model

Description

The Lumex Opto/Components Inc. LED is a high-quality LED that is designed for use in various applications.

  • Series: SML-LXFP0603
  • Standard Package: 3,000
  • Configuration: Standard
  • Viewing Angle: 130°
  • Lens Transparency: Clear, colorless
  • Color: Green
  • Voltage Rating: 2V forward (typ)
  • Current Test: 5mA
  • Peak Wavelength: 574nm
  • Millicandela Rating: 13mcd
  • Temperature Range: -20°C to 85°C
  • ECCN: EAR99
  • REACH: Unaffected
