Same model may have multiple batches, images only for reference.

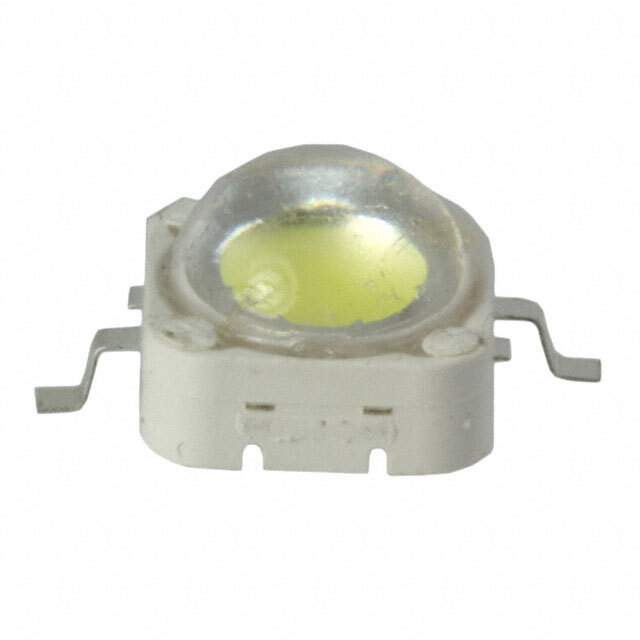

SML-LXL99UWC-TR/5 Real Image
Same model may have multiple batches, images only for reference.

SML-LXL99UWC-TR/5

Part No SML-LXL99UWC-TR/5
Manufacturer Lumex Opto/Components Inc.
Catalog LED Lighting - White
Description LED TITANBRITE COOL WHITE 2SMD / LED Lighting series White, Cool 6000K 4.5V 1.2A 100° 2-SMD, Gull Wing Exposed Pad
Datasheet
SML-LXL99UWC-TR/5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lumex Opto/Components Inc.
Series TitanBrite™
Package Tape & Reel (TR)
Color White, Cool
CCT (K) 6000K
Flux @ 25°C, Current - Test 190lm (140lm ~ 240lm)
Current - Test 1.2A
Voltage - Forward (Vf) (Typ) 4.5V
Lumens/Watt @ Current - Test 35 lm/W
Current - Max 1.5A
Viewing Angle 100°
Mounting SMD (SMT)
Package / Case 2-SMD, Gull Wing Exposed Pad
Dimension 0.354" L x 0.354" W (9.00mm x 9.00mm)
Height - Seated (Max) 0.265" (6.73mm)
Base Product Number SML-LXL99
Other Names 67-2117-1,67-2117-2,SMLLXL99UWCTR5,67-2117-6
Standard Package 500
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240266-SML-LXL99UWC-TR/5
Ultra Librarian 3D Model Ultra Librarian SML-LXL99UWC-TR/5 CAD Model

Description

The SML-LXL99UWC-TR/5 is an optoelectronic component with a cool white color.

  • Series: TitanBrite™ LED
  • Packaging: Tape and reel
  • Height Seated: 0.265 inches
  • Standard Package: 500 pieces
  • Mounting: SMD (SMT)
  • Maximum Current: 1.5A
  • Viewing Angle: 100 degrees
  • Forward Voltage: 4.5V
  • Current Test: 1.2A
  • CCT: 6000K
  • Flux @ 25°C, Current - Test: 190lm (140lm ~ 240lm)
  • Lumens/Watt @ Current - Test: 35 lm/W
  • Package/Case: 2-SMD, Gull Wing Exposed Pad
  • Dimension: 0.354 inches L x 0.354 inches W (9.00mm x 9.00mm)
  • MSL Level: 3 (168 Hours)
  • REACH Status: REACH unaffected
  • HTSUS: 8541.41.0000
  • Manufacturer: Lumex Opto/Components Inc.
