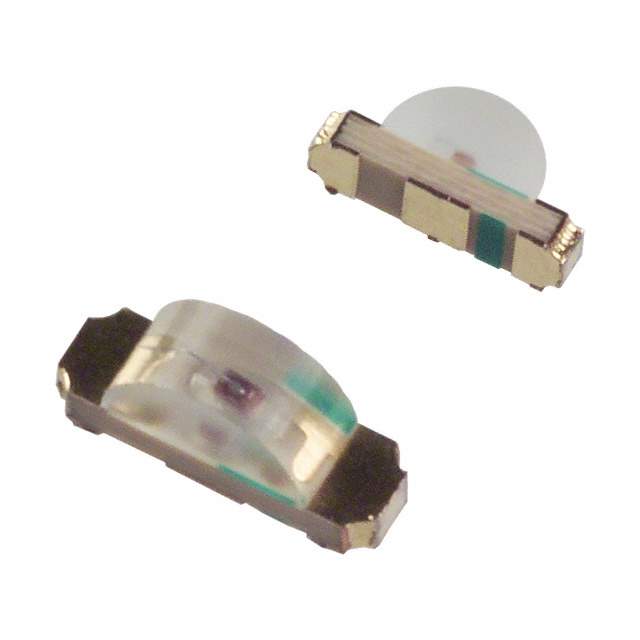

SML-LXR85YC-TR Real Image
Same model may have multiple batches, images only for reference.

SML-LXR85YC-TR

Part No SML-LXR85YC-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED YELLOW CLEAR SMD R/A / Yellow LED Indication - Discrete 2.1V 2-SMD, No Lead
Datasheet
SML-LXR85YC-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Color Yellow
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 10mcd
Lens Style Rectangle with Domed Top
Lens Size 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 130°
Mounting Type Surface Mount, Right Angle
Wavelength - Peak 585nm
Package / Case 2-SMD, No Lead
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.00mm
Base Product Number SML-LXR85
Other Names 67-1558-2,67-1558-2R,SMLLXR85YCTR,67-1558-6,67-1558-6R,SML-LXR85YC,67-1558-1,67-1558-1R
Standard Package 3,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241835-SML-LXR85YC-TR
Ultra Librarian 3D Model Ultra Librarian SML-LXR85YC-TR CAD Model

Description

The Lumex Opto/Components Inc. SML-LXR85YC-TR is a yellow LED indication component with a standard configuration.

  • Viewing Angle: 130 degrees
  • Millicandela Rating: 10mcd
  • Voltage Forward: 2.1V
  • Current Test: 20mA
  • Wavelength Peak: 585nm
  • Lens Shape: Rectangle
  • Lens Style: Domed top
  • Lens Size: 2.00mm x 1.00mm
  • Dimension: 3.20mm L x 1.60mm W
  • Packaging: Tape and reel
  • Description: Reliable LED for various applications
