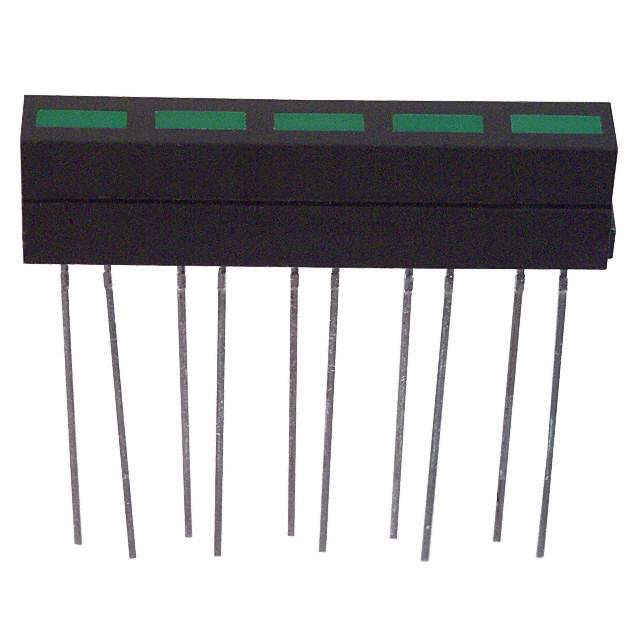

SSA-LXB525GD Real Image
Same model may have multiple batches, images only for reference.

SSA-LXB525GD

Part No SSA-LXB525GD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED ARRAY 2X5MM 5-SEG GREEN / LED Circuit Board Indicator LED Circuit Board Indicator Bar - 5 Wide, SIP Green (x 5) Diffused, Tinted 2.2V 25mA Rectangle with Flat Top 5.30mm x 1.80mm Through Hole
Datasheet
SSA-LXB525GD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Green (x 5)
Wavelength - Peak 565nm
Configuration Bar - 5 Wide, SIP
Current 25mA
Millicandela Rating 10mcd
Viewing Angle 110°
Lens Type Diffused, Tinted
Lens Style Rectangle with Flat Top
Lens Size 5.30mm x 1.80mm
Voltage Rating 2.2V
Mounting Type Through Hole
Base Product Number SSA-LXB525
Other Names LU20015,67-1202R,67-1202,SSALXB525GD
Standard Package 210
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238237-SSA-LXB525GD
Ultra Librarian 3D Model Ultra Librarian SSA-LXB525GD CAD Model

Description

The Lumex Opto/Components Inc. electronic component with Win Source Part Number 1238237-SSA-LXB525GD is an optoelectronic component, specifically LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs.

  • Color: Green (x 5)
  • Packaging: Bulk
  • Voltage Rating: 2.2V
  • Standard Package: 210
  • Configuration: Bar - 5 Wide, SIP
  • Viewing Angle: 110°
  • Millicandela Rating: 10mcd
  • Wavelength - Peak: 565nm
  • Current: 25mA
  • Lens Type: Diffused, Tinted
  • Mounting Type: Through Hole
  • Lens Style: Rectangle with Flat Top
  • Lens Size: 5.30mm x 1.80mm
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8541.41.0000
