Same model may have multiple batches, images only for reference.

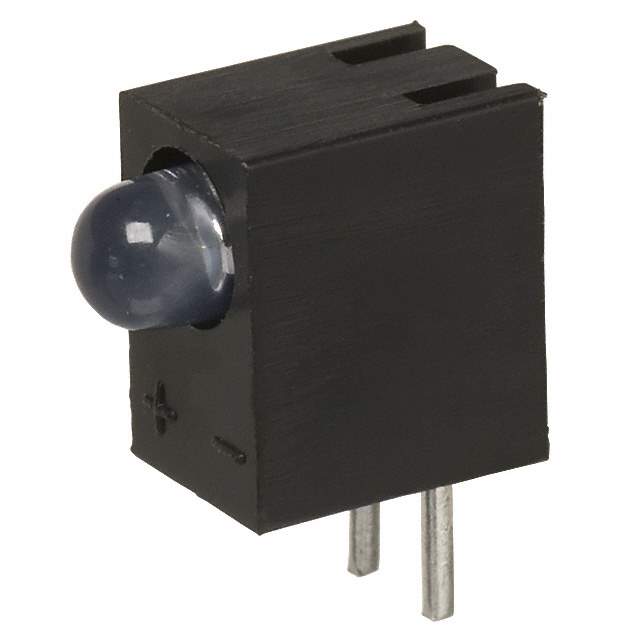

SSF-LXH103USBD Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH103USBD

Part No SSF-LXH103USBD
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM RA FAULT-IND BLUE PCMT / LED Circuit Board Indicator LED Circuit Board Indicator Single Blue Diffused, Tinted 3.5V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
SSF-LXH103USBD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Blue
Wavelength - Peak 470nm
Configuration Single
Current 20mA
Millicandela Rating 80mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 3.5V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH103
Other Names SSF-LXH103USBD,SSFLXH103USBD,67-2028
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238255-SSF-LXH103USBD
Ultra Librarian 3D Model Ultra Librarian SSF-LXH103USBD CAD Model

Description

The SSF-LXH103USBD is an optoelectronic component that is ideal for use as an LED circuit board indicator.

  • Manufacturer: Lumex Opto/Components Inc.
  • Win Source Part Number: 1238255-SSF-LXH103USBD
  • Series: SSF-LXH103
  • Color: Blue
  • Voltage Rating: 3.5V
  • Millicandela Rating: 80mcd
  • Viewing Angle: 60 degrees
