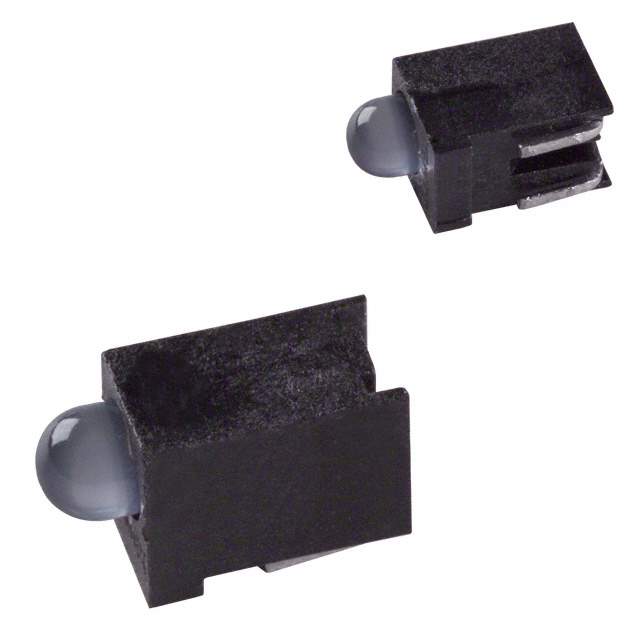

SSF-LXH305USBD-TR Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH305USBD-TR

Part No SSF-LXH305USBD-TR
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED INGAN BLUE DIFF 470NM SMD / LED Circuit Board Indicator LED Circuit Board Indicator Single Blue Diffused, Tinted 3.5V 20mA Round with Domed Top 3mm, T-1 Surface Mount, Right Angle
Datasheet
SSF-LXH305USBD-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Tape & Reel
Product Status Obsolete
Color Blue
Wavelength - Peak 470nm
Configuration Single
Current 20mA
Millicandela Rating 80mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 3.5V
Mounting Type Surface Mount, Right Angle
Base Product Number SSF-LXH305
Other Names SSFLXH305USBDTR,67-1746-1R,67-1746-6,67-1746-2R,67-1746-2,67-1746-1
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238087-SSF-LXH305USBD-TR
Ultra Librarian 3D Model Ultra Librarian SSF-LXH305USBD-TR CAD Model

Description

The SSF-LXH305USBD-TR is a blue LED circuit board indicator, array, light bar, bar graph discrete component manufactured by Lumex Opto/Components Inc.

  • Millicandela Rating: 80mcd
  • Viewing Angle: 60 degrees
  • Package: Tape and reel
  • Standard Package: 1,000 units
  • Lens Type: Diffused and tinted
  • Lens Color: Blue
  • Forward Voltage: 3.5V
  • Current Test: 20mA
  • Wavelength Peak: 470nm
  • Mounting Type: Surface mount, right angle
  • Lens Style: Round with a domed top
  • Lens Size: 3mm, T-1
  • REACH: Unaffected
  • ECCN: EAR99
