Same model may have multiple batches, images only for reference.

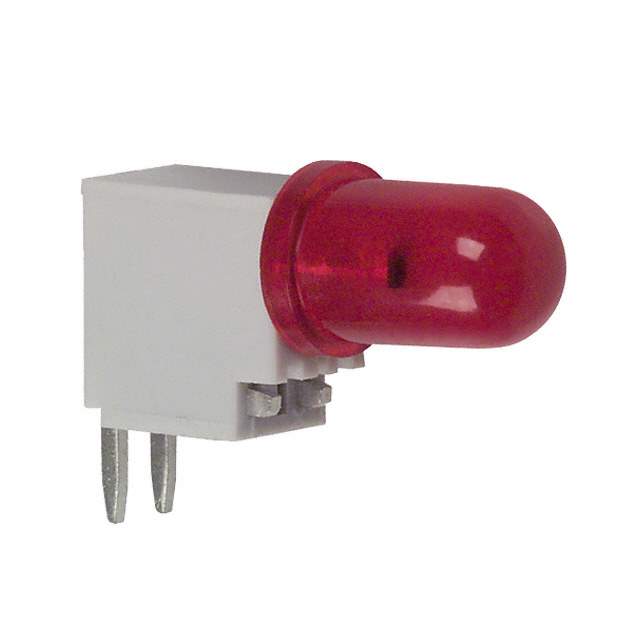

SSF-LXH4RA5ID-5V Real Image
Same model may have multiple batches, images only for reference.

SSF-LXH4RA5ID-5V

Part No SSF-LXH4RA5ID-5V
Manufacturer Lumex Opto/Components Inc.
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 5MM 5V RELAMPABLE RED PCMT / LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 5V 12mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
Datasheet
SSF-LXH4RA5ID-5V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Wavelength - Peak 635nm
Configuration Single
Current 12mA
Millicandela Rating 30mcd
Viewing Angle 60°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 5mm, T-1 3/4
Voltage Rating 5V
Mounting Type Through Hole, Right Angle
Base Product Number SSF-LXH4
Other Names 67-1299,67-1299R,LU20321
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1238175-SSF-LXH4RA5ID-5V
Ultra Librarian 3D Model Ultra Librarian SSF-LXH4RA5ID-5V CAD Model

Description

The SSF-LXH4RA5ID-5V LED from Lumex Opto/Components Inc. is a single configuration LED with a diffused, tinted lens type.

  • Manufacturer: Lumex Opto/Components Inc.
  • Configuration: Single
  • Lens Type: Diffused, tinted
  • Lens Style: Round with a domed top
  • Lens Size: 5mm, T-1 3/4
  • Viewing Angle: 60 degrees
  • Millicandela Rating: 30mcd
  • Peak Wavelength: 635nm
  • Current: 12mA
  • Mounting: Through hole, right angle
  • Voltage Rating: 5V
  • Packaging: Bulk
  • Standard Package: 100
  • ECCN: EAR99
  • REACH: Unaffected
