Same model may have multiple batches, images only for reference.

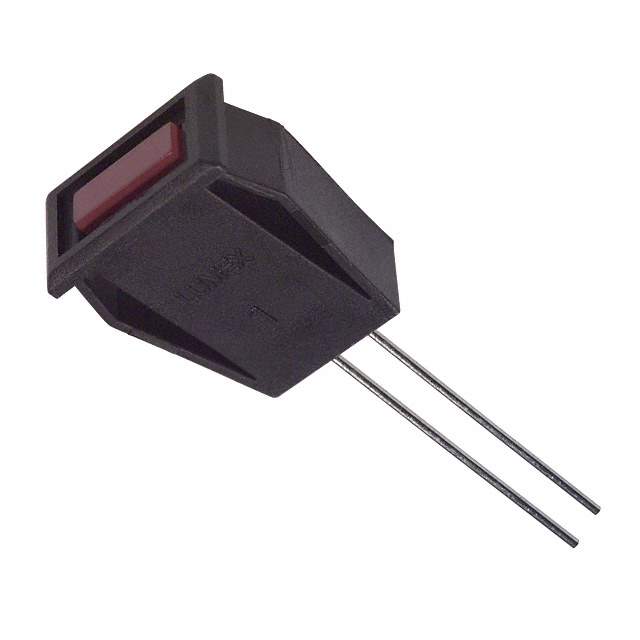

SSI-LXH072SRD Real Image
Same model may have multiple batches, images only for reference.

SSI-LXH072SRD

Part No SSI-LXH072SRD
Manufacturer Lumex Opto/Components Inc.
Catalog Panel Indicators, Pilot Lights
Description LED 2.3X7MM SUPER RED PANEL MNT / LED Panel Indicator Red Diffused 110° 1.7V 30mA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Panel Indicators, Pilot Lights
Mfr Lumex Opto/Components Inc.
Package Bulk
Type LED
Lamp Color Red
Lens Color Red
Lens Transparency Diffused
Ratings Vf (Typ), If (Max)
Voltage 1.7V
Current 30mA
Panel Cutout Shape Rectangle
Panel Cutout Dimensions 0.43" x 0.21" (11.00mm x 5.30mm)
Lens Size 7.00mm x 2.30mm
Lens Style Rectangle with Flat Top
Millicandela Rating 50mcd
Wavelength - Peak 660nm
Viewing Angle 110°
Base Product Number SSI-LXH072
Other Names LU1009B1,67-1186,67-1186R
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1237830-SSI-LXH072SRD
Ultra Librarian 3D Model Ultra Librarian SSI-LXH072SRD CAD Model

Description

The SSI-LXH072SRD is a panel indicator and pilot light electronic component from Lumex Opto/Components Inc.

  • LED Color: red
  • Lens Color: diffused
  • Viewing Angle: 110 degrees
  • Millicandela Rating: 50mcd
  • Voltage: 1.7V
  • Current: 30mA
  • Panel Cutout Dimensions: 0.43 inches by 0.21 inches
  • Lens Style: rectangle with a flat top
  • Lens Size: 7.00mm by 2.30mm
  • Package Type: bulk
