Same model may have multiple batches, images only for reference.

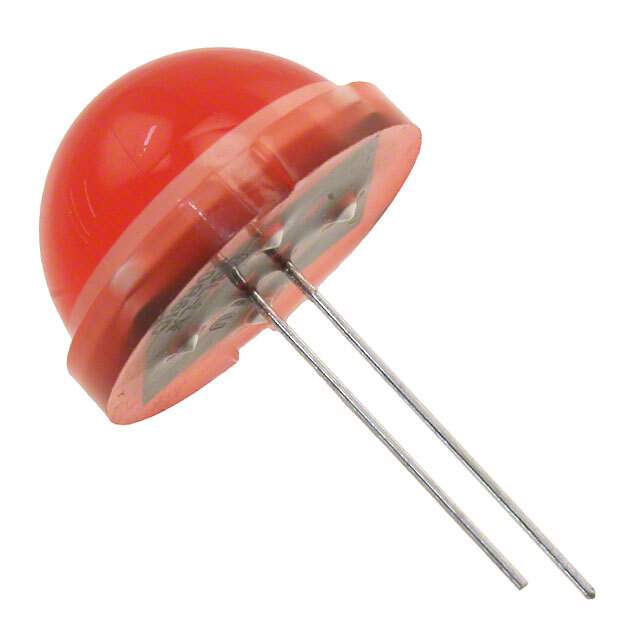

SSL-LX20R6ID Real Image
Same model may have multiple batches, images only for reference.

SSL-LX20R6ID

Part No SSL-LX20R6ID
Manufacturer Lumex Opto/Components Inc.
Catalog LED Indication - Discrete
Description LED RED DIFFUSED 6CHIP JUMBO T/H / Red LED Indication - Discrete 6V Radial
Datasheet
SSL-LX20R6ID Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Lumex Opto/Components Inc.
Package Bulk
Color Red
Configuration Standard
Lens Color Red
Lens Transparency Diffused
Millicandela Rating 35mcd
Lens Style Round with Domed Top
Lens Size 20.00mm Dia
Voltage - Forward (Vf) (Typ) 6V
Current - Test 20mA
Viewing Angle 120°
Mounting Type Through Hole
Wavelength - Peak 635nm
Package / Case Radial
Supplier Device Package 6-CHIP JUMBO
Height (Max) 13.50mm
Base Product Number SSL-LX20
Other Names 67-1527,67-1527R
Standard Package 41
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242026-SSL-LX20R6ID
Ultra Librarian 3D Model Ultra Librarian SSL-LX20R6ID CAD Model

Description

The SSL-LX20R6ID LED indication component by Lumex Opto/Components Inc. is a red LED with a diffused lens color.

  • Viewing Angle: 120 degrees
  • Millicandela Rating: 35mcd
  • Forward Voltage: 6V
  • Current Test: 20mA
  • Wavelength Peak: 635nm
  • Package/Case: Radial
  • Lens Style: Round with a domed top
  • Lens Size: 20.00mm Dia
