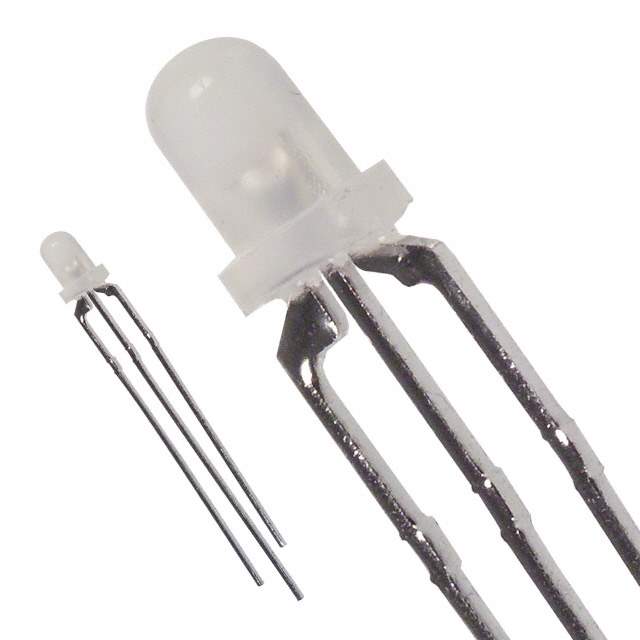

Same model may have multiple batches, images only for reference.

SSL-LX3059IYW

Name: SSL-LX3059IYW
Brand: Lumex Opto/Components Inc.
SKU: 1242083
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SSL-LX3059IYW
Manufacturer	Lumex Opto/Components Inc.
Catalog	LED Indication - Discrete
Description	LED RED/YLW DIFF T-3MM TRI T/H / Red, Yellow LED Indication - Discrete 2V Red, 2.1V Yellow Radial - 3 Leads
Datasheet	SSL-LX3059IYW Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	Lumex Opto/Components Inc.
Package	Bulk
Color	Red, Yellow
Configuration	Common Cathode
Lens Color	White
Lens Transparency	Diffused
Millicandela Rating	30mcd Red, 30mcd Yellow
Lens Style	Round with Domed Top
Lens Size	3mm, T-1
Voltage - Forward (Vf) (Typ)	2V Red, 2.1V Yellow
Current - Test	20mA Red, 20mA Yellow
Viewing Angle	60°
Mounting Type	Through Hole
Wavelength - Peak	635nm Red, 585nm Yellow
Package / Case	Radial - 3 Leads
Supplier Device Package	T-3mm TRI-LEADED
Height (Max)	7.03mm
Base Product Number	SSL-LX3059
Other Names	67-1328R,Q3341265,LU204617,67-1328,SSLLX3059IYW
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1242083-SSL-LX3059IYW
Ultra Librarian 3D Model	Ultra Librarian SSL-LX3059IYW CAD Model

Alternative Products

Description

The SSL-LX3059IYW LED indication component by Lumex Opto/Components Inc. is a red and yellow LED with a diffused white lens color.

Viewing Angle: 60 degrees
Millicandela Rating: 30mcd for both red and yellow
Forward Voltage: 2V for red and 2.1V for yellow
Current Test: 20mA for both
Wavelength Peak: 635nm for red and 585nm for yellow
Package/Case: Radial with 3 leads
Lens Style: Round with a domed top
Lens Size: 3mm, T-1
