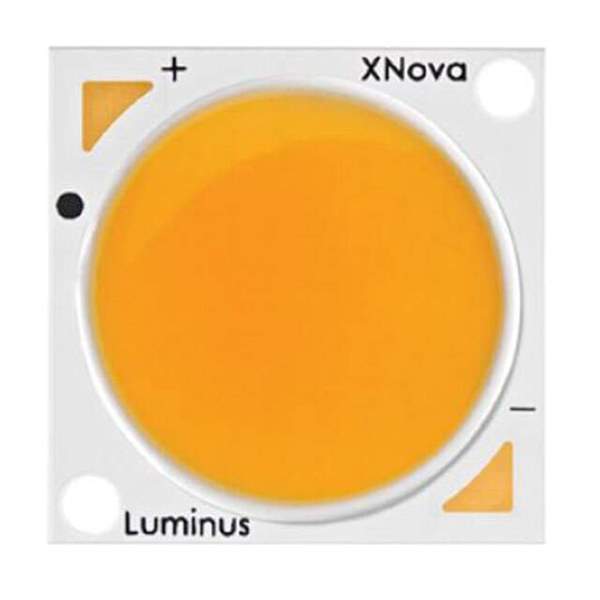

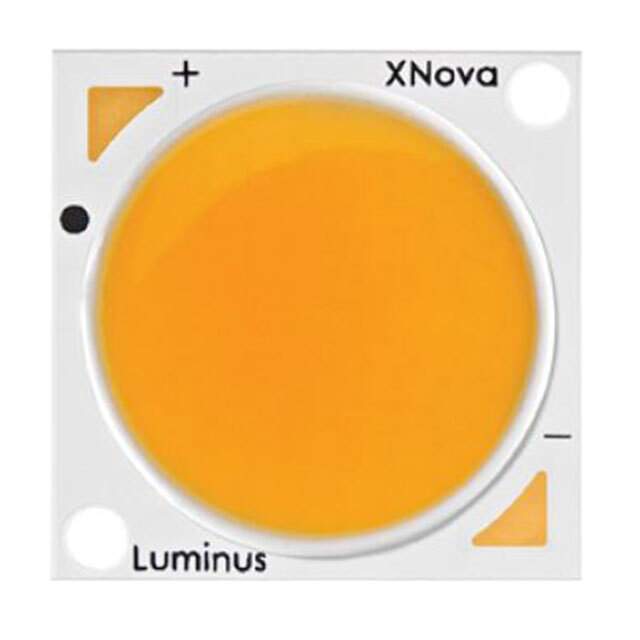

CXM-18-27-80-36-AA00-F2-3 Real Image
Same model may have multiple batches, images only for reference.

CXM-18-27-80-36-AA00-F2-3

Part No CXM-18-27-80-36-AA00-F2-3
Manufacturer Luminus Devices Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB WHT 17.5MM 2700K 80CRI
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Luminus Devices Inc.
Packaging Tray
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Configuration Square
Current - Test 800mA
Voltage - Forward (Vf) (Typ) 35V
Current - Max 1.6A
CRI (Color Rendering Index) 80
Viewing Angle 120°
Dimension 21.50mm L x 21.50mm W
Height 1.37mm
Light Emitting Surface (LES) 17.50mm Dia
Lens Type Flat
Manufacturer Pack Quantity 180
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 814231-CXM-18-27-80-36-AA00-F2-3
Ultra Librarian 3D Model Ultra Librarian CXM-18-27-80-36-AA00-F2-3 CAD Model

Description

The Luminus Devices Inc. CXM-18-27-80-36-AA00-F2-3 chip on board (COB) LED emitter is a high-performance LED that emits warm white light at a color temperature of 2700K.

  • CRI: 80
  • Viewing Angle: 120°
  • Dimensions: 21.50mm L x 21.50mm W
  • Forward Voltage: 35V (typical)
  • Maximum DC Forward Current: 1.6A
