Same model may have multiple batches, images only for reference.

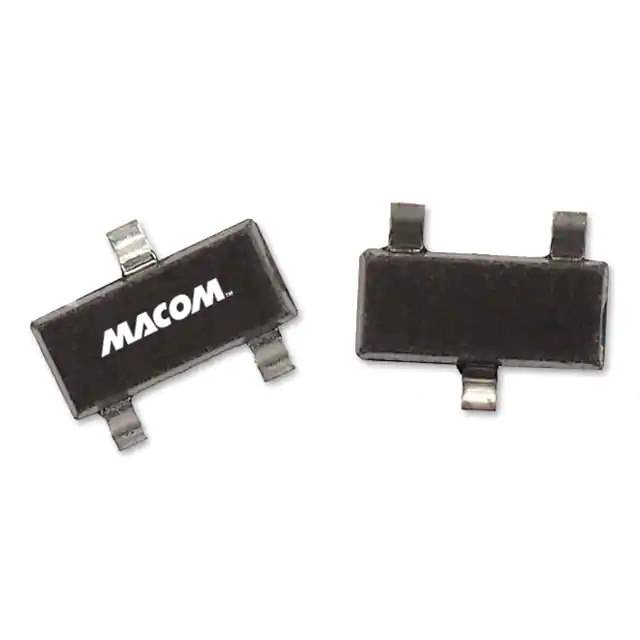

MA4E1340A1-287T Real Image
Same model may have multiple batches, images only for reference.

MA4E1340A1-287T

Part No MA4E1340A1-287T
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description SCHOTTKY PLASTIC LEAD-FREE
Datasheet
MA4E1340A1-287T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr M/A-Com Technology Solutions
Series MA4E1340
Package Tape & Reel
Product Status Active
Diode Type Schottky - Single
Voltage - Peak Reverse (Max) 70V
Current - Max 200 mA
Capacitance @ Vr, F 2pF @ 0V, 1MHz
Power Dissipation (Max) 250 mW
Temperature Range - Operating -55°C ~ 125°C (TJ)
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Base Product Number MA4E1340
Standard Package 3,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 628729-MA4E1340A1-287T
Ultra Librarian 3D Model Ultra Librarian MA4E1340A1-287T CAD Model

Description

The MA4E1340A1-287T is a Schottky diode from M/A-Com Technology Solutions.

  • Series: MA4E1340
  • Applications: RF Applications
  • Maximum Current Rating: 200 mA
  • Peak Reverse Voltage: 70V
  • Capacitance @ 0V and 1MHz: 2pF
  • Power Dissipation: 250 mW
  • Package: TO-236-3, SC-59, SOT-23-3
  • Operating Temperature Range: -55°C to 125°C
  • Status: Active
  • Standard Package: 3,000 pcs
