Same model may have multiple batches, images only for reference.

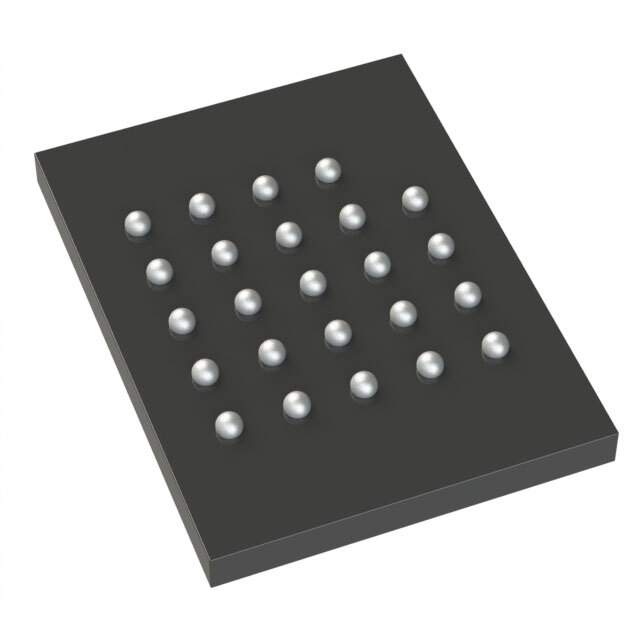

MX25U12835FXDI-10G Real Image
Same model may have multiple batches, images only for reference.

MX25U12835FXDI-10G

Part No MX25U12835FXDI-10G
Manufacturer Macronix
Catalog Memory
Description MEMORY / FLASH - NOR (SLC) Memory IC 128Mbit SPI - Quad I/O 104 MHz 6 ns 24-CSPBGA (6x8)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Macronix
Series MX25xxx35/36 - MXSMIO™
Package Tray
Product Status Not For New Designs
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR (SLC)
Memory Size 128Mbit
Memory Organization 32M x 4, 64M x 2, 128M x 1
Memory Interface SPI - Quad I/O
Clock Frequency 104 MHz
Write Cycle Time - Word, Page 30µs, 3ms
Access Time 6 ns
Voltage - Supply 1.65V ~ 2V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 24-TBGA, CSPBGA
Supplier Device Package 24-CSPBGA (6x8)
Standard Package 480
MSL Level 3 (168 Hours)
Win Source Part Number 1339190-MX25U12835FXDI-10G
Ultra Librarian 3D Model Ultra Librarian MX25U12835FXDI-10G CAD Model

Description

The MX25U12835FXDI-10G is a high-performance NOR flash memory IC with a storage capacity of 128Mbit and is manufactured by Macronix.

  • Memory Size: 128Mbit
  • Interface: SPI - Quad I/O
  • Clock Frequency: 104 MHz
  • Package: 24-TBGA, CSPBGA
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C (TA)
  • Series: MX25xxx35/36 - MXSMIO™
  • Lifecycle Status: Not Recommended for New Designs
