Maxim Integrated DS1307Z+T&R Real-Time Clock

The DS1307Z+T&R from Maxim Integrated is a highly versatile and reliable real-time clock (RTC) IC, designed to provide precise time and date tracking in a wide array of electronic applications. This 8-pin SOIC (Small Outline Integrated Circuit) device is part of the widely acclaimed DS1307 series, known for its ease of integration and low power consumption, making it an ideal choice for embedded systems, consumer electronics, and IoT devices.

One of the standout features of the DS1307Z+T&R is its ability to operate on very low power, enabling extended battery life in portable applications. It maintains accurate timekeeping with a crystal oscillator and has a built-in power-sense circuit that detects power failures, automatically switching to a backup battery supply to ensure uninterrupted operation.

The device supports a simple I2C interface, which allows for easy communication with microcontrollers and other digital systems. The DS1307Z+T&R provides a full binary-coded decimal (BCD) clock/calendar with 56 bytes of NV SRAM. This non-volatile storage is perfect for data that needs to be preserved during power loss, such as system configuration or logging information.

Key specifications of the DS1307Z+T&R include:

• 56-Byte, Battery-Backed, General-Purpose RAM with Unlimited Writes
• I2C Serial Interface for Simple Integration
• Low Power Operation Extends Battery Backup Run Time
• Programmable Square-Wave Output Signal
• Automatic Power-Fail Detect and Switch Circuitry
• Consumes Less Than 500nA in Battery-Backup Mode with Oscillator Running
• Fully Operational from 4.5V to 5.5V

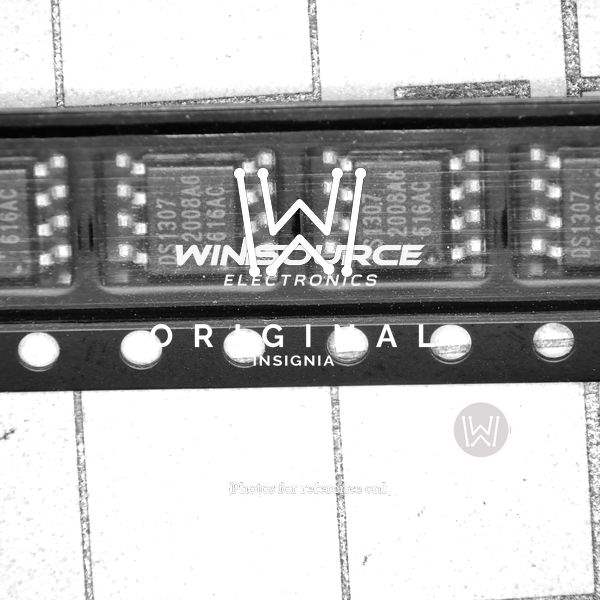

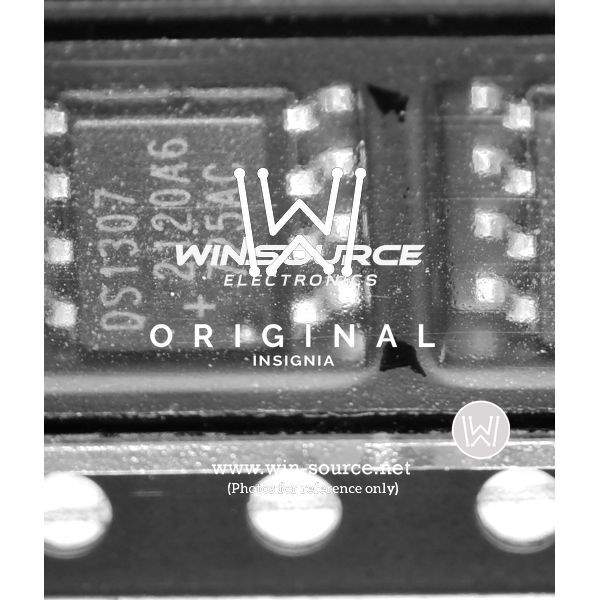

The DS1307Z+T&R is not only practical but also highly durable. It is designed to operate in a temperature range of 0°C to +70°C, making it suitable for most controlled environments. The RTC comes in a "tape and reel" (T&R) packaging format, which facilitates efficient mounting and handling in automated manufacturing processes.

In summary, the Maxim Integrated DS1307Z+T&R Real-Time Clock is a compact, full-featured, and energy-efficient solution for accurate timekeeping in electronic devices. Its robust feature set and ease of use make it a popular choice for designers and engineers looking to incorporate reliable timekeeping functionality into their projects.
