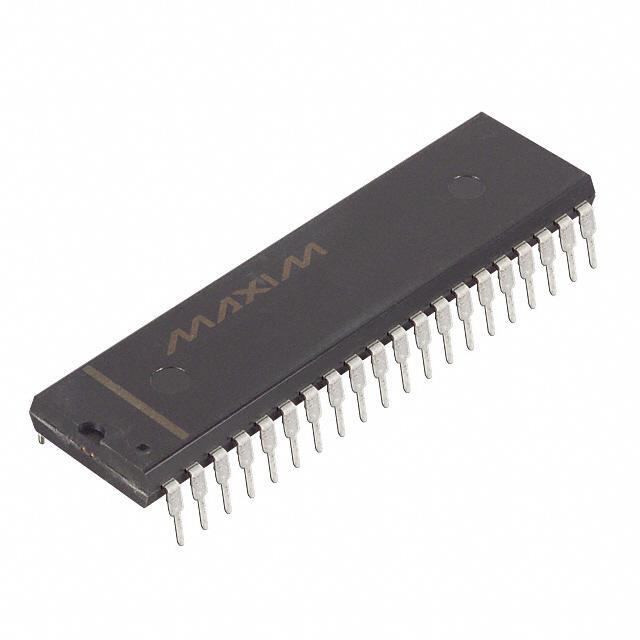

The DS80C320-MCG+ is an advanced high-speed microcontroller from Maxim Integrated, designed to offer a superior alternative to the standard 8051 microcontroller. By enhancing both the speed and power consumption characteristics of the classic design, the DS80C320-MCG+ provides an ideal solution for demanding embedded systems.

Key Features

• High-Speed Architecture: The DS80C320 offers CPU speeds up to three times faster than the original 8051 at the same clock frequency. This is achieved through a more efficient instruction set that executes the majority of instructions in fewer clock cycles.
• Low-Power Operation: Despite its high-speed capabilities, this microcontroller operates with significantly reduced power consumption, making it suitable for power-sensitive applications.
• Dual Data Pointers: To accelerate data movement, the DS80C320-MCG+ includes dual data pointers, which can be automatically incremented or decremented, saving valuable instruction time.
• Expanded Interrupt System: With a total of four priority levels, the DS80C320's interrupt system allows for more precise control and prioritization of system events.
• Flexible Clock Options: The device supports a wide range of clock inputs, including crystal, RC, or external clock sources, providing versatility for various system designs.

Applications

The DS80C320-MCG+ is well-suited for a variety of applications where high performance and low power are key requirements. These include but are not limited to:

• Industrial Control Systems
• Telecommunications
• Automotive Systems
• Consumer Electronics

Technical Specifications

• Package: 44-Pin PLCC (Plastic Leaded Chip Carrier)
• Temperature Range: -40°C to +85°C
• Voltage Range: 4.5V to 5.5V
• I/O Pins: 32 Programmable I/O Lines
• Memory: 256 Bytes of Scratchpad RAM

In conclusion, the Maxim Integrated DS80C320-MCG+ microcontroller stands out with its high-speed performance and energy-efficient design, making it a compelling choice for engineers and designers working on next-generation embedded systems.
