Maxim Integrated MAX1589ETT100+T Voltage Regulator

The MAX1589ETT100+T from Maxim Integrated is a high-performance, adjustable-output, step-down regulator that is designed to provide a reliable power management solution for a wide range of applications. This compact and efficient integrated circuit is particularly suitable for portable devices where space is at a premium and power efficiency is crucial.

With an input voltage range of 2.6V to 5.5V, the MAX1589ETT100+T is versatile enough to be used in systems powered by single-cell lithium-ion (Li+) batteries, 3-cell NiMH, or regulated 5V supplies. It can deliver up to 500mA of output current, which makes it an excellent choice for powering core voltages of modern microprocessors and memory chips in portable electronics.

The output voltage of the MAX1589ETT100+T is adjustable via external resistors, giving designers the flexibility to set the voltage to the specific needs of their application. The device can be programmed for output voltages from 0.8V up to 3.6V, which covers the common core voltages required by most low-power digital devices. This makes it an ideal choice for custom voltage regulation scenarios in complex designs.

The regulator operates at a high switching frequency of 1.2MHz, which allows for the use of small, low-cost ceramic capacitors and inductors, reducing the overall footprint and bill of materials for the power supply design. Its high-frequency operation also translates to a fast transient response, which is critical for maintaining voltage stability during rapid load changes.

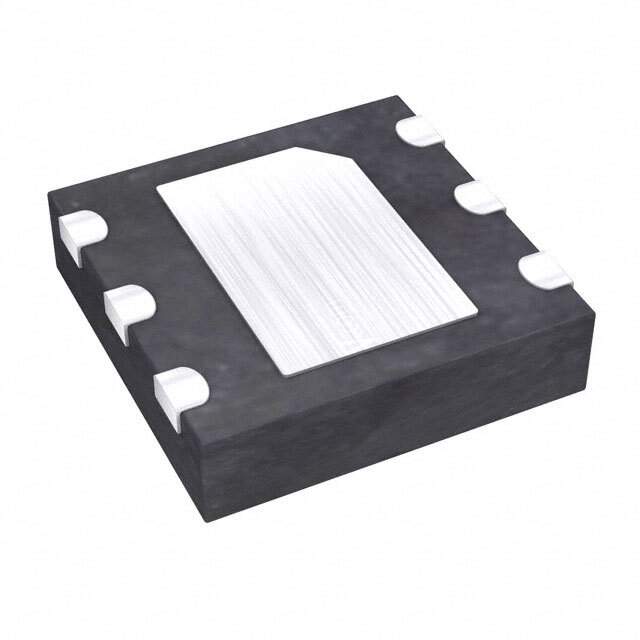

Additional features of the MAX1589ETT100+T include a low quiescent current, thermal overload protection, and a soft-start function to minimize inrush current during startup. The device is offered in a small, 6-pin thin SOT23 package, making it a space-saving solution for densely packed circuit boards.

With its high efficiency, adjustable output, and compact size, the Maxim Integrated MAX1589ETT100+T voltage regulator is an excellent choice for engineers looking to optimize their power management systems in portable and space-constrained applications.
