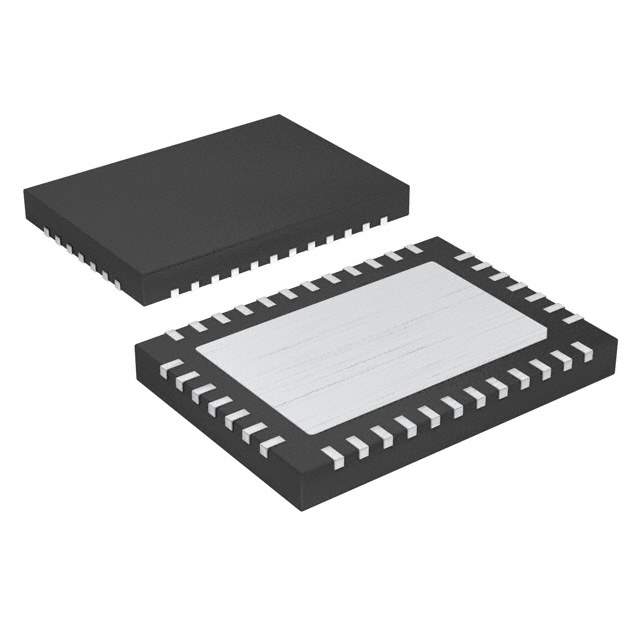

Maxim Integrated MAX16809ATU+T LED Driver IC

The MAX16809ATU+T from Maxim Integrated is a high-performance LED driver IC designed to provide a flexible and efficient solution for automotive and industrial lighting systems. This advanced driver IC is capable of driving multiple LEDs with high precision, making it an ideal choice for applications requiring consistent brightness and color uniformity.

Key Features

• High Efficiency: The device offers excellent power efficiency, which helps to reduce heat generation and power consumption in LED lighting applications.
• Wide Input Voltage Range: With an input voltage range of 5.5V to 40V, the MAX16809ATU+T can accommodate a variety of power supplies and fluctuations in the power source.
• Integrated MOSFET: The inclusion of an integrated high-side n-channel MOSFET allows for simplified circuit design and reduced component count.
• Adjustable Current Control: Users can set the LED current from 10mA to 150mA, providing flexibility in the design and brightness control of the lighting system.
• Thermal Protection: The device includes thermal shutdown protection, which helps to prevent damage from overheating, ensuring a longer lifespan for the LED driver and the LEDs it controls.
• PWM Dimming: It supports PWM dimming, which allows for precise control over the brightness levels of the LEDs without affecting color or efficiency.

Applications

The MAX16809ATU+T is suitable for a wide range of applications, including:

• Automotive exterior and interior lighting
• Industrial lighting systems
• Architectural and ambient lighting
• LED backlighting for LCD displays

Product Specifications

The MAX16809ATU+T is offered in a TSSOP-16 package and operates over the -40°C to +125°C temperature range, making it robust for use in harsh environments. Its compact form factor and high integration level make it an excellent choice for space-constrained applications where reliability and performance are critical.

With its combination of features and performance, the MAX16809ATU+T is an essential component for designers looking to create efficient, reliable, and high-quality LED lighting solutions.
