The MAX2240EBL from Maxim Integrated is a high-performance, Silicon-Germanium (SiGe) power amplifier designed specifically for 2.4GHz wireless LAN (WLAN) applications. This power amplifier is an ideal choice for portable battery-powered devices due to its low-voltage operation and power-saving features. It is optimized for use in devices that comply with the IEEE 802.11b and 802.11g wireless standards, ensuring reliable and efficient wireless communication for users.

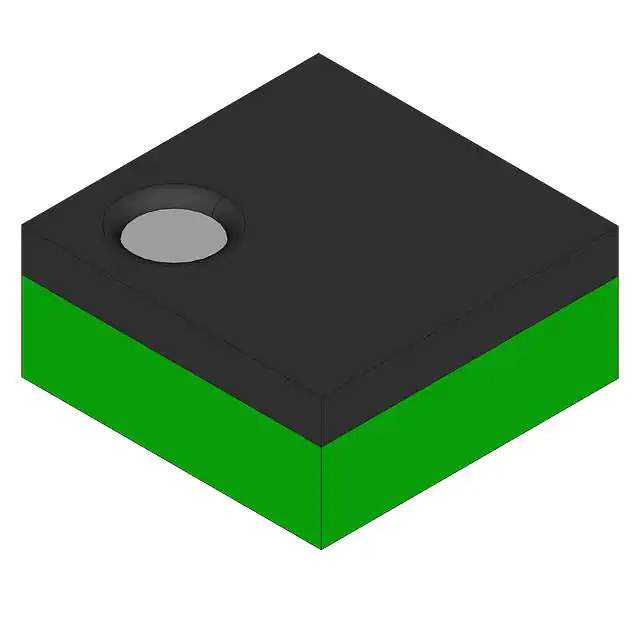

This compact amplifier is housed in a 6-pin μDFN-EP (Exposed Paddle) package, which is not only space-saving but also offers excellent thermal performance. The MAX2240EBL operates from a single +2.7V to +3.3V supply, making it highly compatible with a wide range of portable electronic devices. Its low operating voltage helps to minimize power consumption, thereby extending battery life in mobile applications.

The MAX2240EBL boasts an adjustable bias control, which allows for performance optimization according to the specific application needs. This feature enables the user to strike a balance between linearity, output power, and current consumption. With an output power of +22dBm at 3.3V, the amplifier can deliver a strong signal for robust and clear wireless communication.

Additionally, the device includes an integrated power detector that provides closed-loop power control, ensuring consistent performance and simplifying the design of the power control loop. The MAX2240EBL also features an excellent 50Ω match on both the input and output, which reduces the need for external components and simplifies the design process.

Maxim Integrated has designed the MAX2240EBL with an emphasis on reliability and performance. The amplifier's advanced SiGe technology not only enhances its performance but also ensures that it operates efficiently under varying conditions. Whether for WLAN cards, access points, or other 2.4GHz ISM band applications, the MAX2240EBL is a compelling solution for designers looking to integrate a power amplifier with high efficiency, low voltage operation, and a small form factor.
