Maxim Integrated MAX2676EWT+T10 Low-Noise Amplifier

The MAX2676EWT+T10 from Maxim Integrated is a state-of-the-art low-noise amplifier (LNA) designed to deliver exceptional performance in a compact package. This LNA is specifically tailored for high-frequency applications, making it an ideal choice for designers working on GPS, Galileo, and GLONASS satellite radio systems. Its high level of integration and low-noise figure enhances the sensitivity of RF front-end receivers, ensuring clear and reliable signal reception.

Constructed with Maxim Integrated's advanced silicon-germanium (SiGe) process, the MAX2676EWT+T10 offers a superior noise figure of just 1.4dB at 1575MHz, which is the frequency used by GPS systems. This low noise figure, coupled with a high gain of 20.5dB, ensures that weak signals are amplified without significant addition of noise, thereby improving the overall signal-to-noise ratio of the system.

Furthermore, this LNA features an integrated filter that is optimized for the 1575MHz GPS band. This onboard filtering capability reduces the need for external components, saving valuable board space and simplifying the design process. The MAX2676EWT+T10 also includes a bypass mode, which is easily controlled via a logic input, allowing the LNA to be switched off when not in use to conserve power.

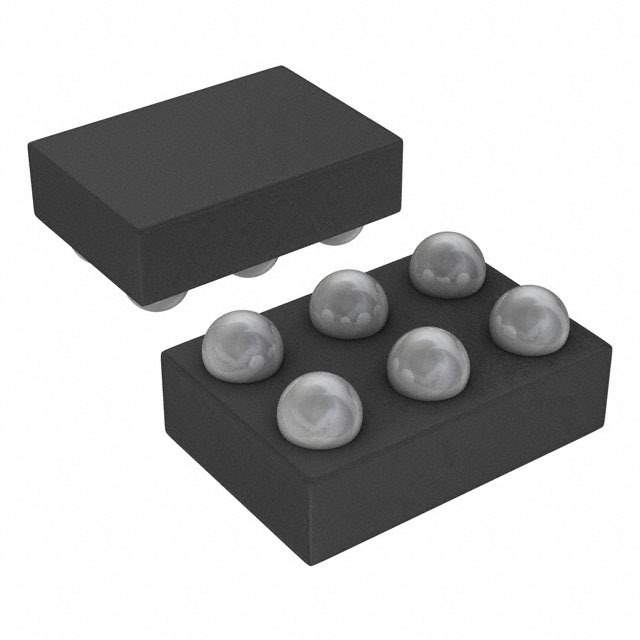

Designed for versatility, the MAX2676EWT+T10 operates over a wide supply voltage range from 1.6V to 3.3V, making it compatible with a variety of power sources and system requirements. It comes in a tiny 6-pin WLP (wafer-level package) that measures just 1.5mm x 1.0mm, offering a highly compact solution for space-constrained applications.

Maxim Integrated's commitment to quality and performance is evident in the MAX2676EWT+T10, which is built to meet the rigorous demands of modern RF systems. Whether used in consumer-grade GPS devices or in professional navigation and tracking equipment, this LNA provides the reliability and performance necessary to ensure accurate and consistent location-based services.
