The MAX3232CUE from Maxim Integrated is a highly integrated serial communication transceiver that operates at low voltages and is designed to conform to the TIA/EIA-232-F standard. This device is particularly suitable for applications that require a reliable data exchange between a microcontroller and a serial port, making it an ideal choice for battery-powered systems, hand-held devices, and portable communication equipment.

Key Features

• Low-Voltage Operation: The MAX3232CUE operates from a single +3.0V to +5.5V power supply, which is ideal for systems that run on low power consumption.
• High Data Rate: Capable of supporting data rates up to 250kbps, this transceiver can handle high-speed communication requirements with ease.
• Low-Power Shutdown: It features a low-power shutdown mode that reduces power consumption when the device is not in active use, further extending battery life in portable applications.
• ESD Protection: The device includes integrated electrostatic discharge (ESD) protection circuitry, safeguarding the transceiver against damage from static electricity up to ±15kV using the human-body model.
• Dual Charge-Pump Circuit: The integrated dual charge-pump circuit creates the necessary voltage levels for RS-232 communication from the single power supply, eliminating the need for additional power sources.
• Guaranteed Data Rate: The transceiver is guaranteed to operate at a data rate of 120kbps in the worst-case load condition, ensuring reliable communication.

Applications

The MAX3232CUE is versatile and can be used in a variety of applications including:

• Portable and battery-powered devices
• Hand-held equipment
• Notebook, sub-notebook, and palmtop computers
• Data cable
• GPS receivers
• Serial port interface and RS-232 communication

Package and Quality

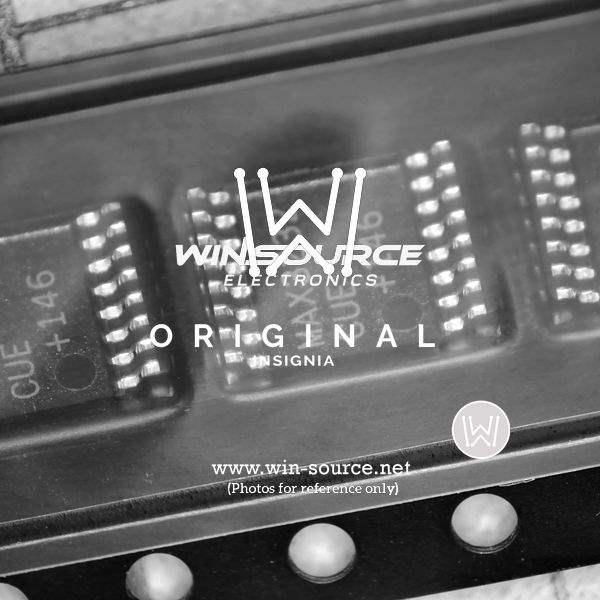

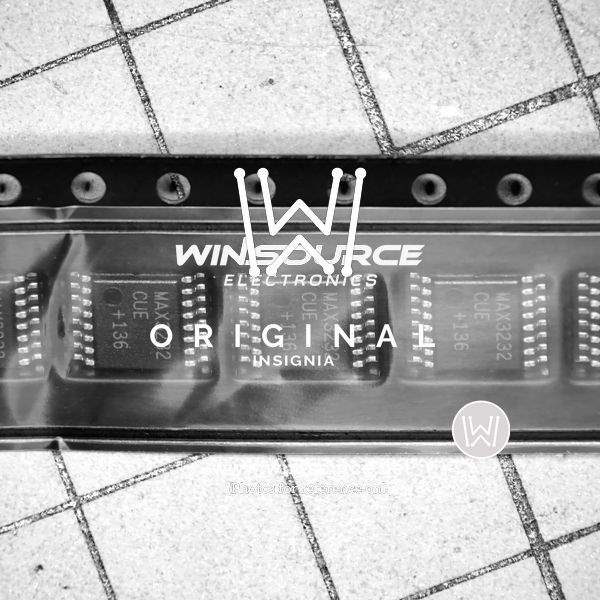

Maxim Integrated packages the MAX3232CUE in a 16-pin TSSOP (Thin Shrink Small Outline Package), providing a compact solution for space-constrained applications. The device is also compliant with various industrial standards, ensuring robust performance and reliability across different operating conditions.
