MAX3322EEUP+T - Maxim Integrated

The MAX3322EEUP+T is a highly integrated device from Maxim Integrated that offers a robust solution for serial communication in demanding applications. This IC is designed to facilitate RS-232 communication in systems where minimal size and advanced features are required. The MAX3322EEUP+T is particularly suitable for portable or space-constrained applications due to its small footprint and low power consumption.

Key Features

• Transceiver Type: The device is a 2/2 transceiver, meaning it can transmit and receive two RS-232 data signals.
• Operating Voltage: It operates from a single +3.0V to +5.5V power supply, making it versatile for various power environments.
• Low-Power Shutdown Mode: The MAX3322EEUP+T incorporates a low-power shutdown mode that reduces power consumption when not in active use, which is ideal for battery-powered applications.
• Data Rate: It supports data rates up to 250kbps, allowing for efficient data transfer without compromising on speed.
• Electrostatic Discharge (ESD) Protection: The device offers ESD protection up to ±15kV, ensuring reliability and longevity in harsh environments.

Applications

The MAX3322EEUP+T is well-suited for a range of applications, including:

• Battery-Powered Equipment
• Handheld Devices
• Notebook, Subnotebook, and Palmtop Computers
• Peripherals

Package and Quality

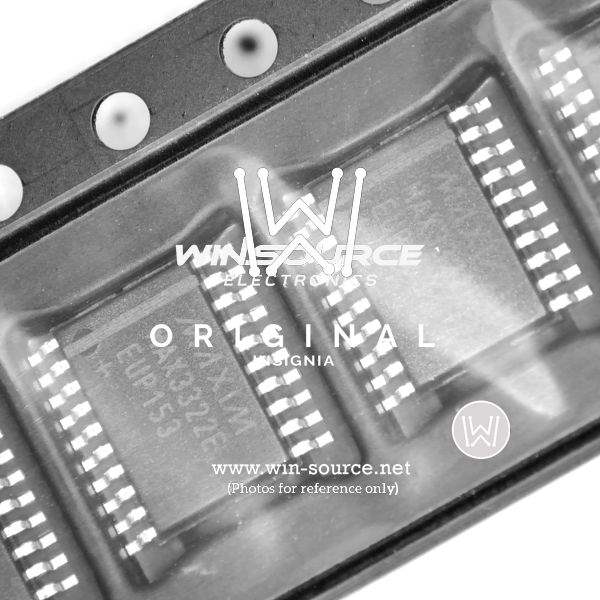

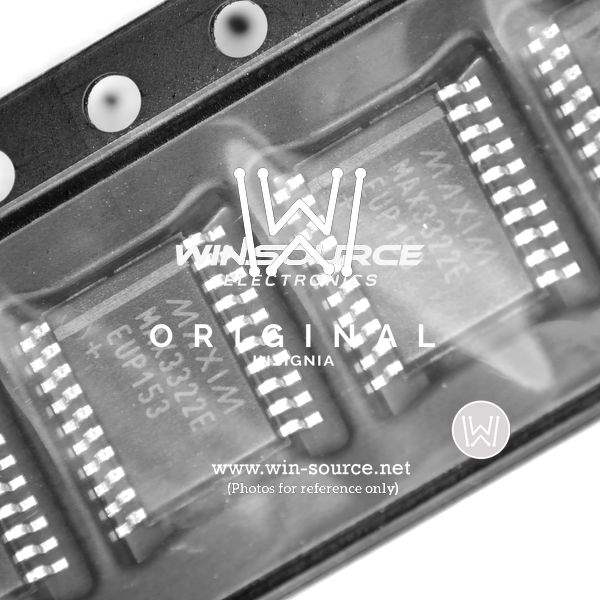

Maxim Integrated packages the MAX3322EEUP+T in a 20-pin TSSOP, which is conducive for space-saving on PCBs. The device is also available in tape and reel format, denoted by the '+T' suffix, which facilitates automated assembly processes for high-volume production. Maxim Integrated is known for its commitment to quality, ensuring that each MAX3322EEUP+T meets stringent reliability standards for industrial and commercial use.
