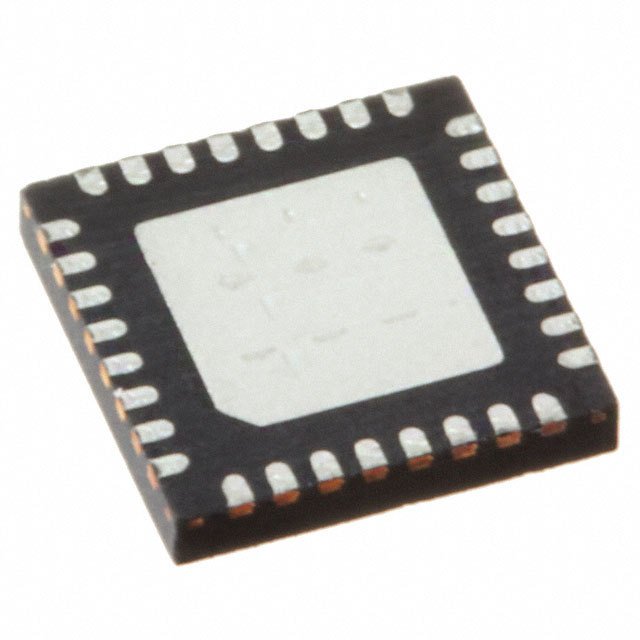

Maxim Integrated MAX4670ETJ+ High-Speed Analog Switch

The MAX4670ETJ+ from Maxim Integrated is a state-of-the-art high-speed analog switch that offers outstanding performance for a variety of applications. Designed with precision and reliability in mind, this component is an ideal choice for signal routing in communication, data acquisition, and audio systems. With its compact and efficient design, the MAX4670ETJ+ is a versatile solution for circuit designers looking to optimize their designs for speed and power efficiency.

This analog switch features low on-resistance (R<sub>ON) of just 4 ohms, which ensures minimal signal distortion and power loss during operation. The MAX4670ETJ+ also boasts fast switching times, with turn-on and turn-off times typically in the range of 20ns, making it suitable for high-frequency signal switching. Additionally, the device operates over a wide voltage range of ±4.5V to ±20V or a single supply of +9V to +36V, providing flexibility in various power environments.

The MAX4670ETJ+ comes in a compact 16-pin TQFN package, making it a space-saving option for densely populated PCBs. Its surface-mount design allows for streamlined assembly processes, and its robust construction ensures long-term reliability even under harsh conditions. Furthermore, the switch is designed with break-before-make switching action, which prevents signal overlap and ensures clean, uninterrupted signal transitions.

Other notable features of the MAX4670ETJ+ include its ESD protection of up to 2000V, which safeguards the device against electrostatic discharges, and its low power consumption, which is critical for battery-powered and portable applications. The device also has TTL/CMOS-compatible control inputs, making it easy to interface with a wide range of logic controllers and microprocessors.

Whether used in audio equipment for crosstalk prevention, in data acquisition systems for multiplexing signals, or in communication devices for efficient signal routing, the MAX4670ETJ+ from Maxim Integrated offers top-notch performance and reliability. Its technical excellence and design flexibility make it a go-to choice for engineers seeking to enhance their electronic designs.
