Product Overview: ATSAME54-XPRO from Microchip Technology

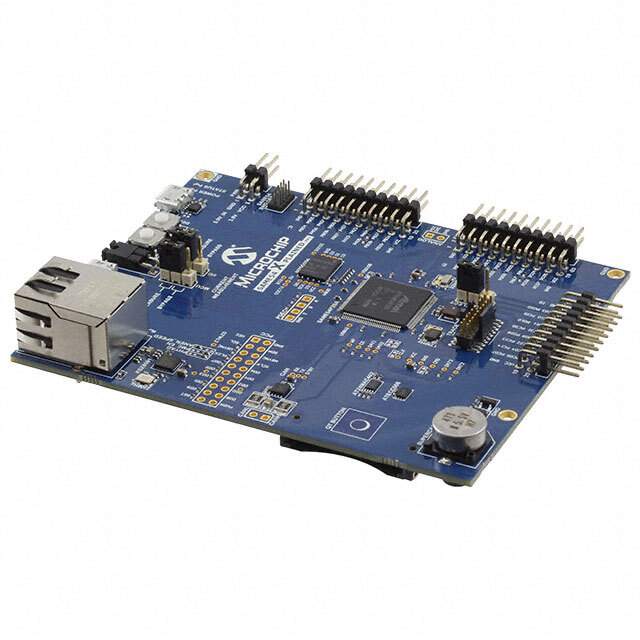

The ATSAME54-XPRO is an evaluation board provided by Microchip Technology, designed to showcase the capabilities of the ATSAME54P20A microcontroller. This powerful development platform is an ideal choice for engineers and developers looking to explore the advanced features of the SAM E54 series microcontrollers, which are based on the high-performance ARM Cortex-M4 processor with Floating Point Unit (FPU).

Key Features:

• High-Performance MCU: At the heart of the ATSAME54-XPRO board is the ATSAME54P20A MCU, which operates at a maximum frequency of 120 MHz and features 1MB of Flash memory and 256KB of SRAM, ensuring ample space and speed for complex applications.
• Connectivity Options: The board includes a variety of connectivity features such as Ethernet MAC with IEEE 1588, USB Host and Device interfaces, CAN-FD, and SD/MMC interface, offering a wide range of options for communication and data transfer.
• Extension Headers: Equipped with extension headers compatible with a wide range of extension boards from Microchip, the ATSAME54-XPRO allows for easy expansion to add additional functionalities like wireless connectivity, touch sensing, and more.
• Integrated Debugger: The onboard Embedded Debugger (EDBG) eliminates the need for external tools and simplifies the debugging and programming process, supporting interfaces such as SWD, JTAG, and a virtual COM port.
• Power Measurement: Developers can monitor and optimize power consumption in real-time with the integrated Power Measurement feature, which is crucial for designing energy-efficient applications.

Development Support:

The ATSAME54-XPRO is supported by Microchip’s suite of development tools, including Atmel Studio, MPLAB X IDE, and the MPLAB Harmony software framework. These tools provide a comprehensive environment for code development, debugging, and optimization, making it easier for developers to bring their projects from conception to reality.

Applications:

With its robust feature set and flexible connectivity options, the ATSAME54-XPRO is well-suited for a variety of applications, including industrial automation, automotive systems, Internet of Things (IoT) devices, and complex control systems.

Whether you're a seasoned developer or just starting out, the ATSAME54-XPRO evaluation board is a versatile and powerful tool that can help accelerate your development process and bring your innovative ideas to life.
