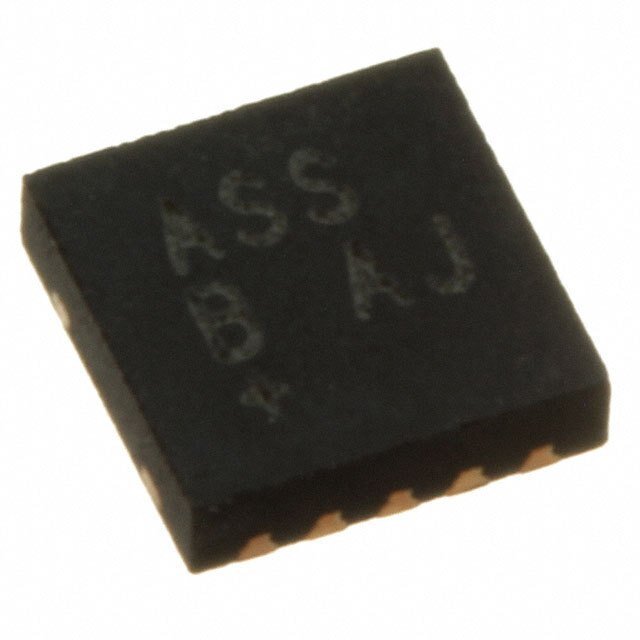

Maxim Integrated MAX4684ETB-T Analog Switch

The MAX4684ETB-T from Maxim Integrated is a high-performance, single-pole/double-throw (SPDT) analog switch that is designed to deliver precision and efficiency for a wide range of applications. This compact and versatile switch is housed in a space-saving 10-pin TDFN package, making it an ideal solution for space-constrained applications.

Featuring low on-resistance (R<sub>ON) of just 0.5 ohms typical, the MAX4684ETB-T ensures minimal signal distortion and provides excellent linearity, which is critical for maintaining signal integrity in analog signal routing. This low R<sub>ON also translates to reduced power loss and improved energy efficiency, which is particularly important in battery-powered devices.

The device operates from a single +1.8V to +5.5V supply, making it compatible with a variety of supply voltages and suitable for a multitude of applications ranging from consumer electronics to industrial systems. The MAX4684ETB-T also features fast switching speeds, with turn-on and turn-off times typically under 20ns, ensuring rapid response in critical applications such as sample-and-hold circuits or multiplexing signals.

Additionally, the MAX4684ETB-T offers high electrostatic discharge (ESD) protection, which safeguards the device against unexpected voltage spikes, thus enhancing its reliability and longevity in harsh environments. The device's extended temperature range of -40°C to +85°C ensures stable operation across diverse operating conditions.

With its break-before-make switching action, the MAX4684ETB-T prevents signal overlap during the transition between two channels, which is essential for preventing glitches and preserving data integrity in digital systems. This feature, combined with its low power consumption and high-speed operation, makes the MAX4684ETB-T a robust and efficient choice for designers looking to optimize their signal routing applications.

Overall, the Maxim Integrated MAX4684ETB-T is a high-quality analog switch that offers a blend of performance, efficiency, and versatility, making it an excellent choice for a broad spectrum of analog signal switching needs.
