MAX4800CXZ - High-Voltage Analog Switch from Maxim Integrated

The MAX4800CXZ is a state-of-the-art high-voltage analog switch designed by Maxim Integrated to deliver exceptional performance in a variety of applications that require high voltage handling and low leakage currents. This device is particularly suited for industrial, medical, and telecommunications applications where precision and reliability are paramount.

Key Features

• High Voltage Handling: Capable of switching analog signals up to 200V peak.
• Low On-Resistance: Features a low on-resistance of typically 10Ω, minimizing signal distortion and power loss.
• Low Charge Injection: The switch design ensures minimal charge is injected into the signal path during switching, preserving signal integrity.
• Low Leakage Current: Exhibits a leakage current of less than 5nA at +25°C, ensuring high precision in sensitive applications.
• Serial Interface Control: Includes a serial interface for control, which reduces the number of control lines needed, saving PCB space and simplifying design.

Applications

• Programmable Logic Controllers (PLCs)
• Medical Ultrasound Imaging
• Automated Test Equipment (ATE)
• Telecommunications Systems

Technical Specifications

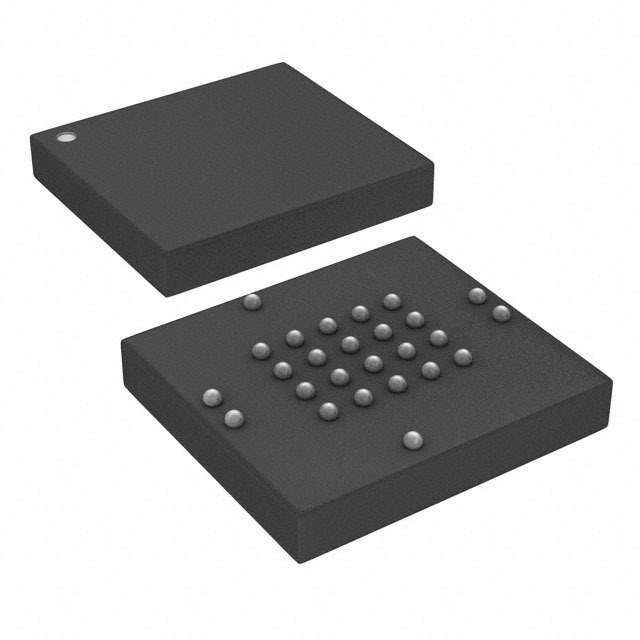

The MAX4800CXZ operates with a dual supply voltage range of ±10V to ±100V or a single supply voltage range of +20V to +200V. It is designed for a -40°C to +85°C operating temperature range, making it reliable in extreme conditions. The device comes in a compact, surface-mount package, which is ideal for space-constrained applications.

Quality and Reliability

Maxim Integrated ensures that the MAX4800CXZ meets rigorous quality and reliability standards. Each unit undergoes comprehensive testing to guarantee performance according to its specifications. This analog switch is an excellent choice for designers seeking a high-voltage switching solution that does not compromise on quality or performance.
