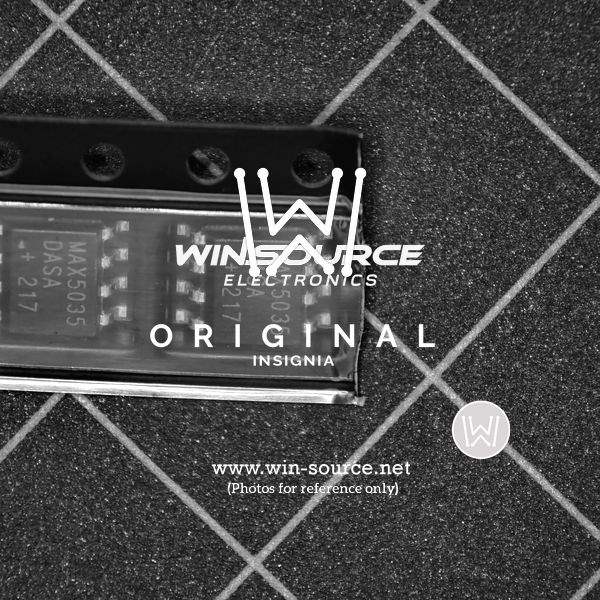

Maxim Integrated's MAX5035DASA+T: High-Efficiency, Adjustable, Step-Down DC-DC Converter

The MAX5035DASA+T from Maxim Integrated is a versatile and efficient step-down DC-DC converter designed to meet the needs of a wide array of applications. This compact and powerful component is engineered to provide a reliable voltage conversion solution, making it an ideal choice for space-constrained applications that require high efficiency and low power dissipation.

With an input voltage range of 7.5V to 76V, the MAX5035DASA+T ensures compatibility with various power sources, including industrial, automotive, and telecommunication systems. This flexibility allows designers to use the same part across different platforms, simplifying inventory management and reducing overall system costs.

The device offers an adjustable output voltage from 1.25V up to 90% of the input voltage, providing the versatility needed to power a broad spectrum of devices. Designers can easily set the output voltage to the desired level using external resistors, which enables precise control over power delivery to sensitive electronic components.

Featuring a high switching frequency of up to 125kHz, the MAX5035DASA+T minimizes the size of external components, such as inductors and capacitors, further reducing the overall footprint of the power supply design. The device also includes an internal compensation network, which simplifies the design process by eliminating the need for additional external compensation components.

The MAX5035DASA+T incorporates a range of protection features to ensure safe operation under various conditions. These include cycle-by-cycle current limit, thermal shutdown, and undervoltage lockout (UVLO), safeguarding the device and the system it powers from potential damage caused by overcurrent, excessive heat, or insufficient supply voltage.

In summary, Maxim Integrated's MAX5035DASA+T is a high-performance, adjustable step-down DC-DC converter that offers a compact solution for a wide range of power management applications. Its high efficiency, broad input voltage range, adjustable output, and integrated protection features make it a robust and flexible choice for designers looking to optimize their power supply designs.
