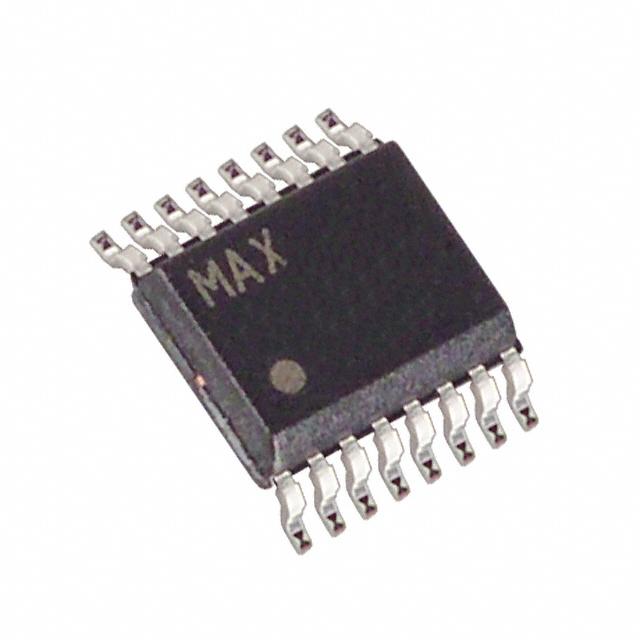

MAX5122BEEE-T

Part No MAX5122BEEE-T
Manufacturer Maxim Integrated
Catalog Data Acquisition - Digital to Analog Converters (DAC)
Description IC DAC 12BIT LP 5V SER 16-QSOP
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Maxim Integrated
Packaging Reel - TR
Status Active
Number of Bits 12
Number of D/A Converters 1
Settling Time 20μs (Typ)
Output Type Voltage - Buffered
Differential Output No
Data Interface SPI
Reference Type External, Internal
Analog Supply Voltage 5V
Digital Supply Voltage 5V
INL/DNL (LSB) ±1 (Max), ±1 (Max)
Temperature Range - Operating -40°C to 85°C
Case / Package 16-QSOP
Win Source Part Number 207450-MAX5122BEEE-T
Ultra Librarian 3D Model Ultra Librarian MAX5122BEEE-T CAD Model

Description

Product Overview: MAX5122BEEE-T from Maxim Integrated

The MAX5122BEEE-T is a precision, low-power, 12-bit voltage-output digital-to-analog converter (DAC) from Maxim Integrated. This high-performance component is designed to deliver high accuracy and stability for demanding applications. With its integrated output amplifier, reference, and feedback resistor, the MAX5122BEEE-T provides a full-scale output voltage range that is highly programmable.

Key Features

  • Resolution: 12-bit accuracy ensures fine granularity in analog signal generation, making it suitable for precision tasks.
  • Output Range: The DAC features a programmable output range, allowing designers to tailor it to specific application requirements.
  • Power Consumption: With low power operation, it is an excellent choice for battery-powered or power-sensitive applications.
  • Package: The MAX5122BEEE-T comes in a 16-pin QSOP package, which is ideal for space-constrained applications.
  • Temperature Range: It operates over the extended industrial temperature range, ensuring reliability in varying environmental conditions.

Applications

The versatility of the MAX5122BEEE-T makes it an excellent choice for a wide range of applications, including:

  • Automated test equipment
  • Data acquisition systems
  • Industrial process control
  • Precision instrumentation
  • Portable battery-operated devices

Performance and Quality

Maxim Integrated is known for its commitment to quality and performance, and the MAX5122BEEE-T is no exception. It delivers consistent performance and maintains its accuracy over time and temperature variations. The device also features a power-on reset circuit that ensures the DAC output powers up to zero volts and remains there until a valid write takes place.

Conclusion

In conclusion, the MAX5122BEEE-T from Maxim Integrated is a robust, high-accuracy DAC that meets the needs of engineers requiring precise voltage control in their designs. Its low power consumption, programmable output range, and compact form factor make it a versatile choice for a multitude of applications across various industries.
