Maxim Integrated MAX685EEE+T Power Management IC

The MAX685EEE+T from Maxim Integrated is a versatile, high-efficiency, power-management integrated circuit (IC) designed to cater to a wide range of applications. This compact, multi-functional device is particularly suitable for portable and battery-powered devices where power efficiency and space constraints are of paramount importance.

The MAX685EEE+T combines a synchronous step-up DC-DC converter with a linear regulator to provide a dual-output power supply from a single input. The step-up converter is capable of delivering a fixed or adjustable output voltage, which makes it incredibly flexible for different design requirements. The linear regulator provides a second, lower voltage, which is often used for powering sensitive analog or digital circuits that require a stable power supply.

One of the key features of the MAX685EEE+T is its high efficiency, which helps to extend battery life in portable devices. The IC achieves this through its low quiescent current and the use of synchronous rectification in the step-up converter, which reduces power losses during conversion. Additionally, the device supports a wide input voltage range, making it suitable for applications that experience varying input conditions.

The MAX685EEE+T also offers a multitude of protective features to ensure the longevity and reliability of the end product. These include overvoltage protection, thermal shutdown, and a low-battery detector that can signal when the battery voltage falls below a critical threshold. The device is also fully specified over the -40°C to +85°C extended temperature range, ensuring performance in harsh environments.

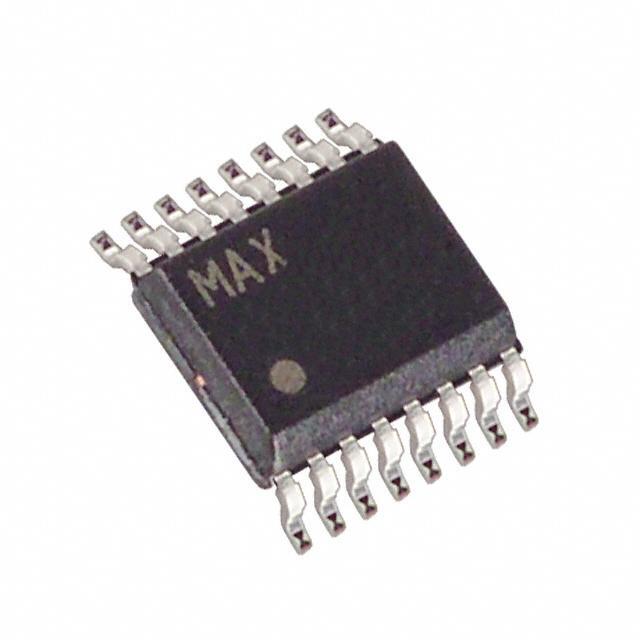

Packaged in a compact 16-pin QSOP, the MAX685EEE+T minimizes the footprint on the PCB, allowing for a more streamlined and space-efficient design. It is available in tape and reel format, denoted by the "+T" suffix, which facilitates automated manufacturing processes, making it an ideal choice for mass production.

In summary, the Maxim Integrated MAX685EEE+T is a high-efficiency power management solution that combines functionality with reliability, designed to meet the stringent requirements of modern portable electronics.
