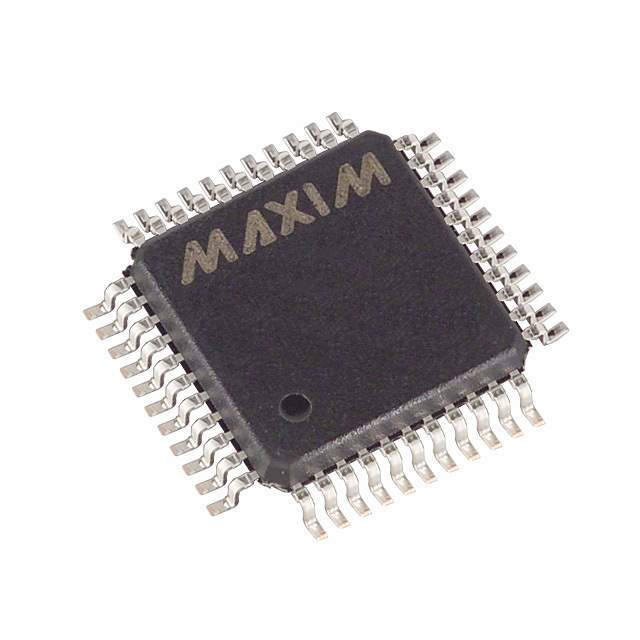

Maxim Integrated MAX6960AMH+D LED Display Driver

The MAX6960AMH+D is a sophisticated LED display driver component from Maxim Integrated, designed to provide a high-performance solution for managing matrix displays. This integrated circuit is part of Maxim's MAX6960 series, and it stands out for its ability to control and drive a matrix of LEDs with precision and efficiency.

Key Features

• Integrated Multiplexing: The device includes onboard multiplexing support, which significantly simplifies the design of LED matrix displays by reducing the number of components required.
• High Drive Capability: With the ability to sink up to 10mA per LED, the MAX6960AMH+D can drive a wide range of LED types, including high-brightness LEDs, making it suitable for both indoor and outdoor applications.
• Grayscale Control: It supports 8-bit (256 levels) of individual LED intensity control, which allows for sophisticated grayscale imaging and enhances the display's ability to show detailed images and smooth animations.
• Digital Interface: The device features an SPI-/QSPI™-/MICROWIRE™-compatible serial interface, enabling easy integration with microcontrollers and other digital systems.
• Thermal Management: Housed in a 48-pin QFN-EP package, the MAX6960AMH+D is designed for optimal thermal performance, ensuring stability and reliability even under high drive conditions.
• Flexible Operation: It operates from a 3.0V to 3.6V supply voltage, providing flexibility in various system designs and ensuring compatibility with a range of power supplies.

Applications

The MAX6960AMH+D is ideal for a variety of applications where LED matrix displays are used. These include:

• Outdoor billboards and signage
• Public information displays
• Industrial control panels
• Portable instruments
• Medical equipment

In summary, the MAX6960AMH+D from Maxim Integrated is a versatile and powerful LED display driver that offers designers a high degree of control over LED matrix displays. Its robust feature set and ease of integration make it an excellent choice for creating sophisticated and reliable LED-based visual solutions.
