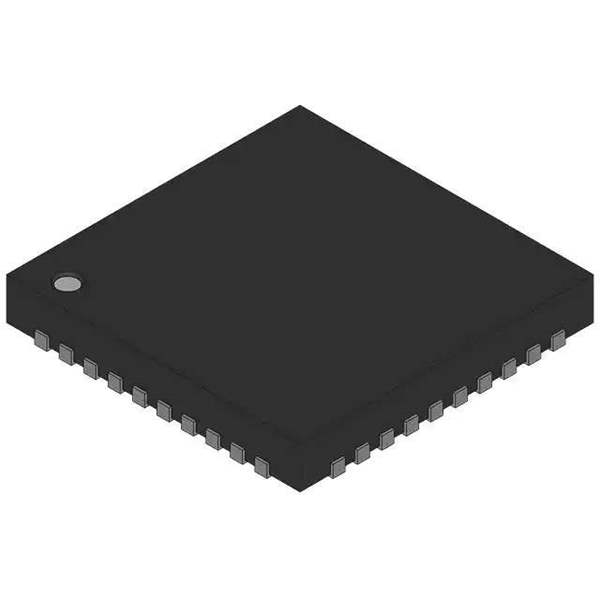

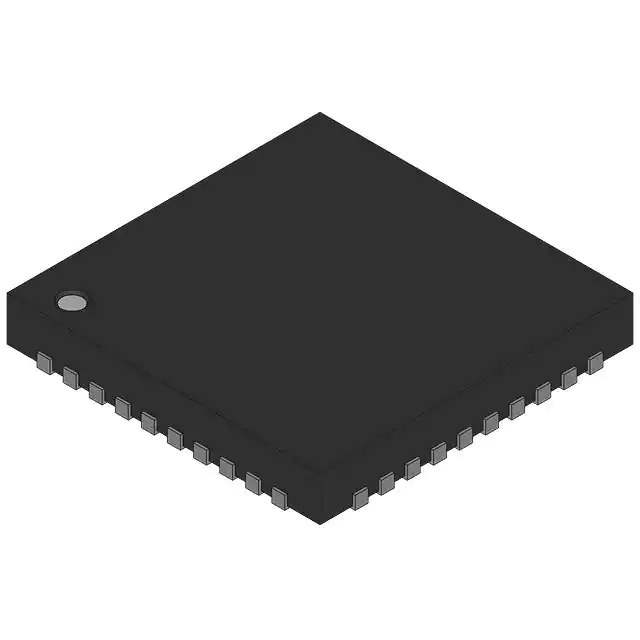

Maxim Integrated MAX7300AGL-T Product Overview

The MAX7300AGL-T from Maxim Integrated is a versatile, highly integrated GPIO (General Purpose Input/Output) expander that is designed to provide additional I/O capabilities to microcontrollers with a minimal footprint. This compact and efficient device is housed in a 40-pin TQFN package, making it ideal for space-constrained applications where I/O expansion is required.

The MAX7300AGL-T operates on a single 2.5V to 5.5V power supply, providing a flexible solution for various system voltages. With its built-in level shifting feature, it can interface with microcontrollers operating at different logic levels, ensuring seamless communication and compatibility with a wide range of devices.

One of the key features of the MAX7300AGL-T is its I²C-compatible serial interface, which supports both 400kHz fast-mode and 1.7MHz high-speed mode. This allows for easy integration into existing systems without the need for complex wiring or additional components. The device also offers 28 programmable I/O ports, which can be configured as either inputs or outputs, giving designers the flexibility to adapt the expander to their specific needs.

The MAX7300AGL-T provides robust protection features to ensure reliable operation in harsh environments. These include built-in power-on reset, voltage brown-out protection, and over-temperature shutdown. Additionally, each I/O port can be configured with programmable transition detection, enabling the detection of changes in input states without the need for continuous polling by the microcontroller, thus reducing system power consumption.

For designers looking to save power, the MAX7300AGL-T offers a shutdown mode that reduces power consumption to just 1µA (max), making it an excellent choice for battery-operated and power-sensitive applications. The device also includes an interrupt output feature, which can be used to alert the microcontroller when input states change, further enhancing its efficiency and responsiveness.

In summary, the MAX7300AGL-T is a highly integrated, power-efficient I/O expander that offers a simple and effective solution for expanding the I/O capabilities of microcontrollers. Its compact size, flexible power supply options, and robust feature set make it an ideal choice for a wide range of applications in the industrial, automotive, and consumer electronics sectors.
