Products specifications

Category Development Boards, Kits, Programmers>Evaluation and Demonstration Boards and Kits
Mfr Analog Devices Inc./Maxim Integrated
Package Bulk
Type Power Management
Function Battery Charger
Utilized IC / Part MAX77860
Supplied Contents Board(s), Cable(s)
Secondary Attributes Graphical User Interface
Base Product Number MAX77860
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Standard Package 1
Win Source Part Number 1075756-MAX77860EVKIT#
Ultra Librarian 3D Model Ultra Librarian MAX77860EVKIT# CAD Model

Description

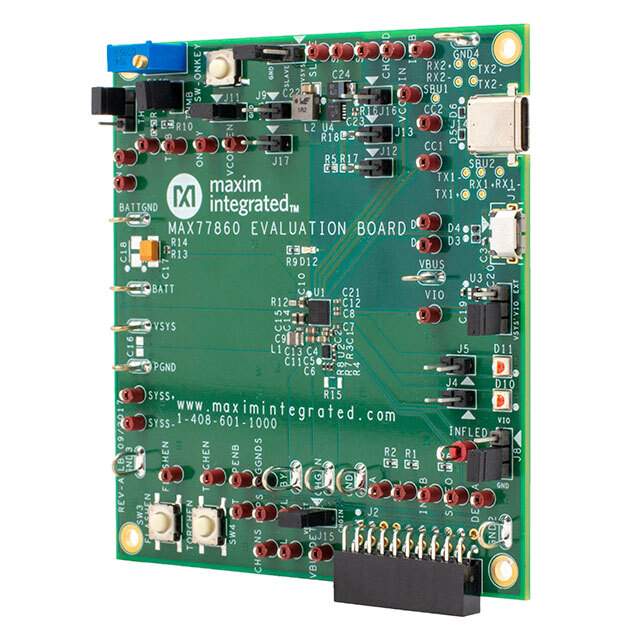

The MAX77860EVKIT# is an evaluation kit designed for the MAX77860, a high-efficiency, high-performance, switch-mode buck charger from Maxim Integrated tailored for applications requiring a compact and reliable power solution. This evaluation kit provides a convenient platform for testing the capabilities of the MAX77860 buck charger in various configurations and applications.

Key Features

  • Integrated switch-mode buck charger for efficient power conversion
  • Supports a wide input voltage range from 3.5V to 23V
  • Programmable fast-charge current up to 3A for quick battery charging
  • USB On-The-Go (OTG) with adjustable output from 4.5V to 5.5V
  • Smart Power Selector™ for seamless transition between input power sources
  • JEITA-compliant temperature-based charge profile for battery protection
  • I<sup>2C interface for programming and status reporting

Applications

The MAX77860 is suitable for a wide range of applications, including but not limited to portable devices, wearable technology, medical devices, and any other system that requires efficient charging and power management. Its compact design and advanced features make it an ideal choice for space-constrained applications.

What's Included in the Kit?

The evaluation kit includes the MAX77860 evaluation board, a USB cable, and necessary documentation to get started. The evaluation board comes pre-assembled with the MAX77860 IC and is equipped with test points and jumpers for easy measurement and configuration.

Getting Started with the MAX77860EVKIT#

To begin using the evaluation kit, users need to connect the board to a power source and a battery. The kit's user-friendly design allows for quick setup and immediate testing. Detailed instructions and support documentation are provided to ensure a smooth evaluation process.

Whether you are an engineer validating the performance of the MAX77860 buck charger or a hobbyist exploring power management solutions, the MAX77860EVKIT# from Maxim Integrated offers a versatile and practical evaluation experience.

For more information and technical support, visit Maxim Integrated's official website or contact their customer support team.
