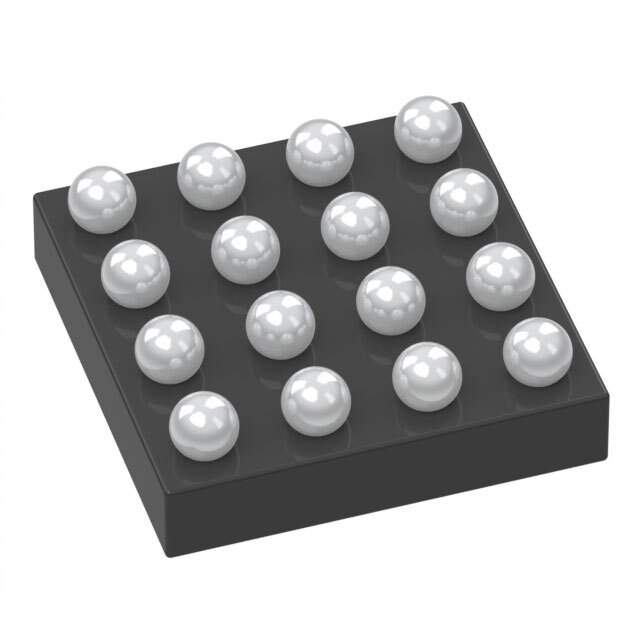

Product Overview: MAX8649EWE+T by Maxim Integrated

The MAX8649EWE+T from Maxim Integrated is a high-efficiency, compact, synchronous step-down DC-DC converter designed to deliver a continuous output current of up to 2A. This power management integrated circuit (PMIC) operates over a wide input voltage range of 2.6V to 5.5V, making it suitable for a variety of portable electronics, such as smartphones, tablets, and digital cameras, as well as for industrial and medical applications where efficient power conversion is crucial.

One of the key features of the MAX8649EWE+T is its high-frequency operation, which allows the use of small, low-profile inductors and ceramic capacitors, thus reducing the overall footprint and height of the power supply solution. This makes it an excellent choice for space-constrained applications. The device also boasts a high switching frequency of up to 4MHz, which enables fast transient response and minimizes output voltage ripple.

The MAX8649EWE+T incorporates a range of protection features to ensure the safety and reliability of the end application. These include overcurrent protection, thermal shutdown, and under-voltage lockout. The device also features a soft-start capability to limit inrush current during startup, contributing to the stability of the power system.

The efficiency of the MAX8649EWE+T is further enhanced by its 100% duty cycle low-dropout operation, which is particularly beneficial during low battery voltages, ensuring that devices remain operational for longer periods. The PMIC is available in a small, 16-pin ultra-thin QFN package, which is ideal for applications where space is at a premium.

Maxim Integrated's MAX8649EWE+T is designed with simplicity in mind, requiring minimal external components and providing a simple, yet robust, power management solution that can be easily integrated into a wide range of electronic devices.
