Maxim Integrated's MAX9718HEBL+TG45 Audio Amplifier

The MAX9718HEBL+TG45 is a high-quality audio amplifier integrated circuit from Maxim Integrated, a renowned manufacturer of analog and mixed-signal products. This component is designed to deliver exceptional audio performance for a wide range of applications, from consumer electronics to automotive audio systems.

At the heart of the MAX9718HEBL+TG45 lies a bridge-tied load (BTL) amplifier capable of driving a mono speaker with high efficiency. This design enables the amplifier to produce a powerful output without the need for a bulky heatsink, making it an ideal choice for space-constrained applications. The device operates from a single 2.7V to 5.5V supply, providing designers with flexibility in power management and catering to systems with varying power requirements.

The MAX9718HEBL+TG45 boasts a low 0.04% total harmonic distortion plus noise (THD+N) at 1kHz, ensuring that audio output is crisp and clear even at high volumes. Additionally, it features a high 85dB power supply rejection ratio (PSRR), which minimizes noise and interference from fluctuating power supplies, thus maintaining the integrity of the audio signal.

With a click-and-pop suppression feature, the MAX9718HEBL+TG45 minimizes the audible clicks and pops that can occur during power-up or shutdown, providing a smoother user experience. The device also includes comprehensive protection features such as thermal overload protection, short-circuit protection, and under-voltage lockout, which enhance the reliability and longevity of the end product.

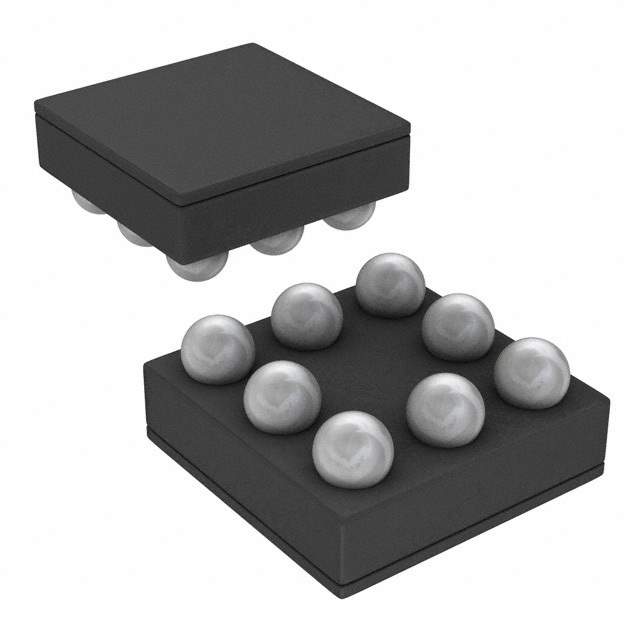

The MAX9718HEBL+TG45 comes in a compact, thermally-efficient leadless package, making it suitable for portable devices where space is at a premium. Its low quiescent current helps extend battery life in portable applications, which is critical for modern, mobile lifestyles.

In summary, the MAX9718HEBL+TG45 from Maxim Integrated is a versatile and robust audio amplifier that offers high-quality sound amplification, energy efficiency, and a small footprint, making it an excellent choice for a variety of audio applications.
