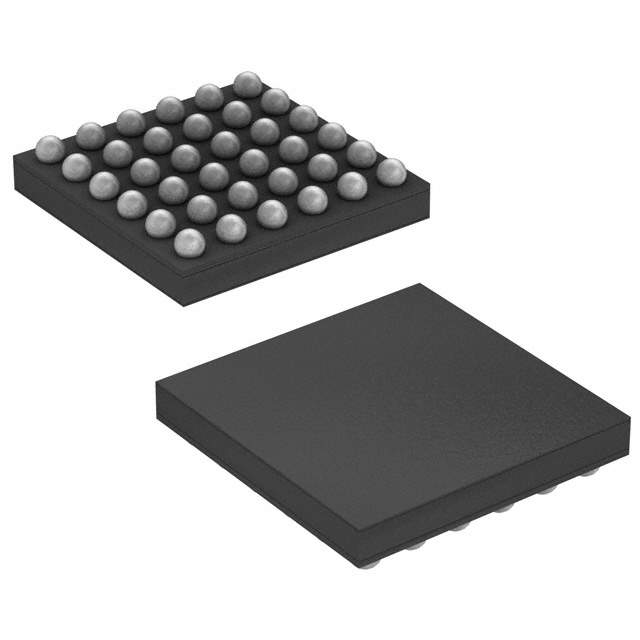

The MAX9775EBX+TG45 from Maxim Integrated is a cutting-edge audio amplifier that offers a seamless integration of power and efficiency for a wide range of audio applications. This high-performance component is designed to deliver superior sound quality while maintaining a compact footprint suitable for portable devices.

Key Features

• High Efficiency: With its Class D operation, the MAX9775EBX+TG45 ensures high efficiency, which is crucial for battery-powered devices, allowing for longer playtime and reduced heat dissipation.
• Integrated DirectDrive Technology: The innovative DirectDrive technology eliminates the need for bulky DC-blocking capacitors, thus reducing the external component count and saving valuable PCB space.
• Flexible Output Power: This audio amplifier can deliver up to 2.4W of continuous output power into a 4Ω load, making it versatile for various audio output requirements.
• Low EMI Emission: It is engineered to produce low electromagnetic interference (EMI), which is vital for keeping electronic devices free of audio signal corruption.

Applications

The MAX9775EBX+TG45 is ideal for a multitude of applications where space and power efficiency are of paramount importance. It is particularly well-suited for:

• Mobile Phones
• Portable Media Players
• Handheld Gaming Devices
• Notebook Computers

Technical Specifications

Parameter Value Output Power 2.4W (into 4Ω) Efficiency Class D THD+N 0.02% (Typical) Supply Voltage 2.7V to 5.5V Package TQFN-20

Overall, the MAX9775EBX+TG45 by Maxim Integrated stands out for its exceptional balance of power, size, and audio performance, making it an excellent choice for designers looking to enhance the audio experience in their next-generation portable devices.
