Products specifications

Category Development Boards, Kits, Programmers - Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Mfr Analog Devices Inc./Maxim Integrated
Series Himalaya
Package Box
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 3.3V
Current - Output 300mA
Voltage - Input 5.5V ~ 42V
Regulator Topology Buck
Frequency - Switching 550kHz
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part MAXM15465
Base Product Number MAXM15465
Standard Package 1
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1348836-MAXM15465EVKIT#
Ultra Librarian 3D Model Ultra Librarian MAXM15465EVKIT# CAD Model

Description

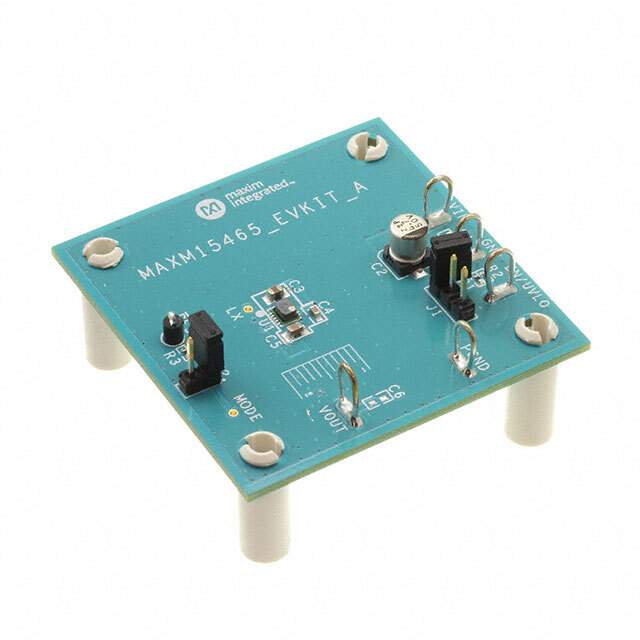

MAXM15465EVKIT# Evaluation Kit by Maxim Integrated

The MAXM15465EVKIT# from Maxim Integrated is a comprehensive evaluation kit designed to facilitate the testing and assessment of the MAXM15465 high-efficiency, Himalaya uSLIC™, step-down power module. This compact and versatile evaluation kit is an essential tool for engineers and designers looking to explore the features and performance of the MAXM15465 power module in their application designs.

Key Features

  • Integrated Solution: The MAXM15465 power module integrates a synchronous step-down DC-DC converter with built-in inductors, FETs, and compensation components within a small, low-profile package. This integration simplifies design and saves valuable board space.
  • Wide Input Voltage Range: The power module supports a broad input voltage range of 4.5V to 42V, making it suitable for a variety of applications, including those with fluctuating input supplies.
  • Adjustable Output Voltage: Users can adjust the output voltage from 0.9V up to 12V to meet the requirements of the target application.
  • High Efficiency: The MAXM15465 power module features high efficiency and operates in pulse-width modulation (PWM) mode, which helps in reducing power losses and improving overall system performance.
  • Thermal Management: The evaluation kit is designed with thermal performance in mind, ensuring that the MAXM15465 operates within its temperature range even under full load conditions.
  • Easy-to-Use: The MAXM15465EVKIT# comes with convenient test points and jumper options for easy evaluation and quick setup. This user-friendly design accelerates the development process and helps in rapid prototyping.

Applications

The MAXM15465 power module and its evaluation kit are ideal for a wide array of applications, including but not limited to:

  • Industrial Power Supplies
  • Automotive Applications
  • Telecommunications Equipment
  • Point of Load (POL) Power Supplies
  • Battery-Powered Devices

With its compact size, ease of use, and comprehensive feature set, the MAXM15465EVKIT# from Maxim Integrated is a valuable tool for developers looking to optimize power solutions in their next-generation electronic products.
