Maxim Integrated MAXM17505ALJ+T High-Efficiency, DC-DC Power Module

The MAXM17505ALJ+T is a compact, high-performance power module from Maxim Integrated that offers a complete switch-mode power supply solution in a small package. This innovative power module integrates a synchronous wide-input step-down DC-DC converter with built-in inductors, FETs, compensation components, and the necessary passive components to provide an efficient power management system.

Designed for ease of use and flexibility, the MAXM17505ALJ+T is capable of delivering up to 2.5A of continuous current with an input voltage range of 4.5V to 60V, making it suitable for a wide array of applications, including industrial, automotive, communications, and consumer electronics. Its adjustable output voltage range from 0.9V up to 24V allows designers to tailor the output to meet specific circuit requirements.

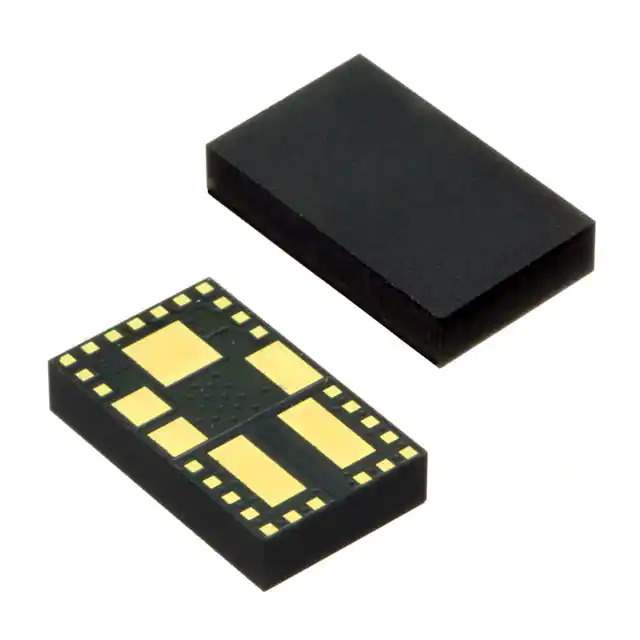

The power module features a high level of integration, which simplifies design, reduces external component count, and minimizes the overall solution footprint. It comes in a compact 10.0mm x 10.5mm x 4.3mm, 60-pin LGA package, which is ideal for space-constrained applications.

Key features of the MAXM17505ALJ+T include:

• High efficiency up to 90%, reducing power loss and heat generation.
• Wide input voltage range (4.5V to 60V) catering to various supply voltages.
• Adjustable output voltage (0.9V to 24V) for a versatile range of applications.
• Integrated components for a simplified design and quick time-to-market.
• Operates at a fixed switching frequency, which can be set from 200kHz to 2.2MHz, allowing for optimization between efficiency and external component size.
• Thermal overload protection, overvoltage and undervoltage lockout, and peak current limiting for enhanced reliability and safety.
• Low radiated emissions (EMI) compliant with EN 55022 Class B.

The MAXM17505ALJ+T is designed not only for high performance but also for reliability, with built-in protection features that ensure long-term stability and operation under adverse conditions. Whether you're developing power supplies for sensitive electronics or rugged industrial systems, this power module from Maxim Integrated provides a robust, efficient, and easy-to-implement solution.
