Same model may have multiple batches, images only for reference.

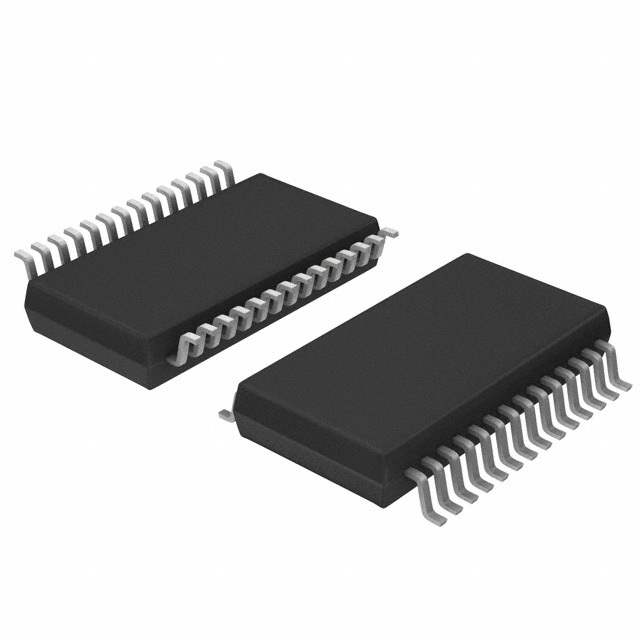

SP211EHEA-L Real Image
Same model may have multiple batches, images only for reference.

SP211EHEA-L

Part No SP211EHEA-L
Manufacturer MaxLinear Inc
Catalog Interface - Drivers, Receivers, Transceivers
Description IC TRANSCEIVER FULL 4/5 28SSOP
Datasheet
SP211EHEA-L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Drivers, Receivers, Transceivers
Mfr MaxLinear Inc
Package Tube
Product Status Discontinued
Type Transceiver
Protocol RS232
Number of Drivers/Receivers 4/5
Duplex Full
Receiver Hysteresis 500 mV
Data Rate 230kbps
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 28-SSOP (0.209", 5.30mm Width)
Supplier Device Package 28-SSOP
Standard Package 46 pcs
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 741947-SP211EHEA-L
Ultra Librarian 3D Model Ultra Librarian SP211EHEA-L CAD Model

Description

The 741947-SP211EHEA-L is a transceiver integrated circuit (IC) designed for interface applications.

  • Category: Drivers, receivers, and transceivers
  • Protocol: RS232
  • Drivers: Four
  • Receivers: Five
  • Communication: Full duplex
  • Receiver Hysteresis: 500mV
  • Data Rate: 230kbps
  • Supply Voltage: 4.5V to 5.5V
  • Package: Tube
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • Status: Discontinued
  • Manufacturer: MaxLinear Inc
