Same model may have multiple batches, images only for reference.

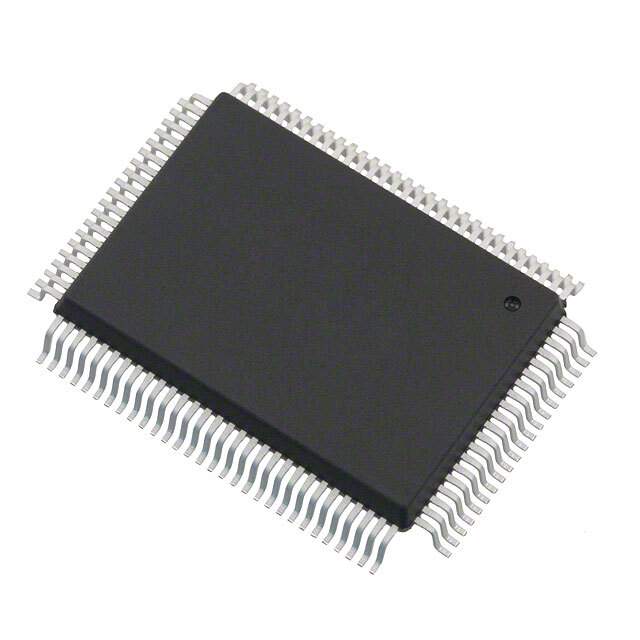

XR16C864CQ-F Real Image
Same model may have multiple batches, images only for reference.

XR16C864CQ-F

Part No XR16C864CQ-F
Manufacturer MaxLinear Inc
Catalog Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description IC UART FIFO 128B QUAD 100QFP  /  UART IC 4, QUART Channel RS232, RS485 128 Byte 100-QFP (14x20)
Datasheet
XR16C864CQ-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Mfr MaxLinear, Inc.
Package Tray
Features Internal Oscillator, Timer/Counter
Number of Channels 4, QUART
FIFO's 128 Byte
Protocol RS232, RS485
Data Rate (Max) 2Mbps
Voltage - Supply 2.97V ~ 5.5V
With Auto Flow Control Yes
With IrDA Encoder/Decoder Yes
With False Start Bit Detection Yes
With Modem Control Yes
Mounting SMD (SMT)
Package / Case 100-BQFP
Supplier Device Package 100-QFP (14x20)
Base Product Number XR16C864
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 1016-1651,1016-1449,XR16C864CQF,XR16C864CQ-F-ND,1016-1449-ND
Standard Package 66
Win Source Part Number 1193758-XR16C864CQ-F
Ultra Librarian 3D Model Ultra Librarian XR16C864CQ-F CAD Model

Description

The XR16C864CQ-F electronic component has a Win Source Part Number of 1193758-XR16C864CQ-F.

  • Maximum Data Rate: 2Mbps
  • FIFO's: 128 byte
  • Auto Flow Control: Yes
  • IrDA Encoder/Decoder: Yes
  • False Start Bit Detection: Yes
  • Modem Control: Yes
  • Voltage Supply: 2.97V ~ 5.5V
  • Package / Case: 100-BQFP
